Hinge Replacement - Liftgate

Hinge Replacement - Liftgate

Removal Procedure

1. Remove the liftgate.
2. Remove the headliner.




3. Use a grease pencil to mark the liftgate hinge position to the body.

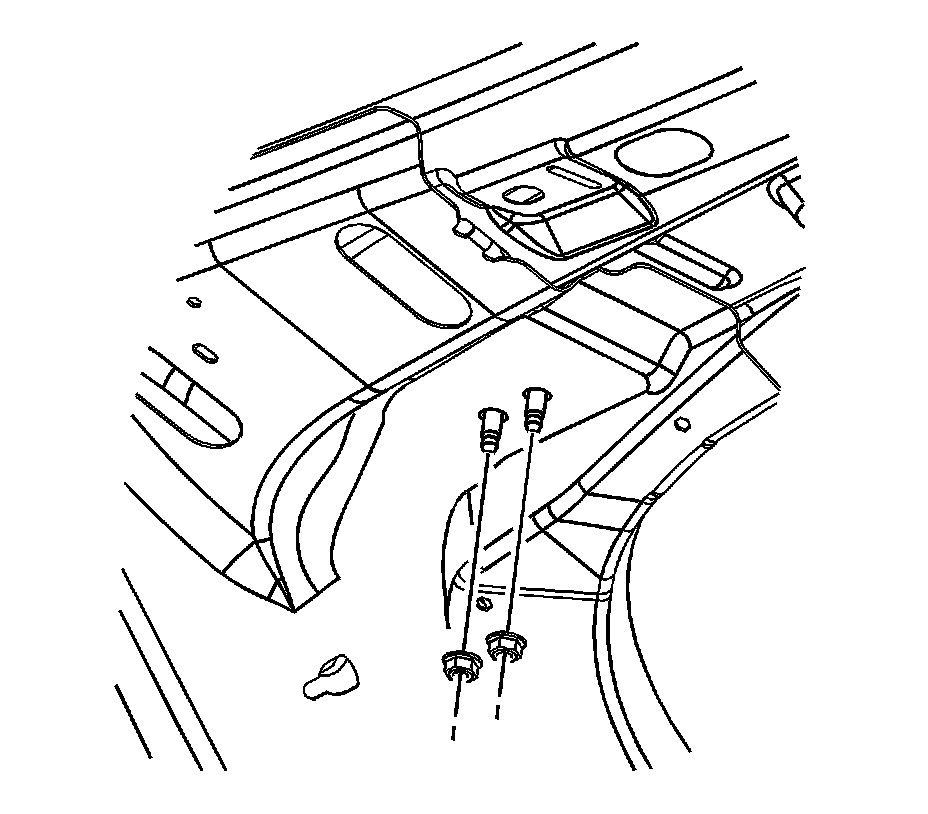

4. Remove the hinge retaining nuts from the vehicle roof.
5. Remove the hinge from the vehicle.

Installation Procedure




1. Align the hinge with the marks made on the vehicle body.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the hinge retaining nuts.

Tighten the liftgate hinge stud nuts to 25 N.m (18 lb ft).

3. Install the headliner.
4. Install the liftgate.
