Front Bumper Shock Absorber: Service and Repair

Energy Absorber Replacement - Front

Removal Procedure

1. Remove the front bumper fascia.

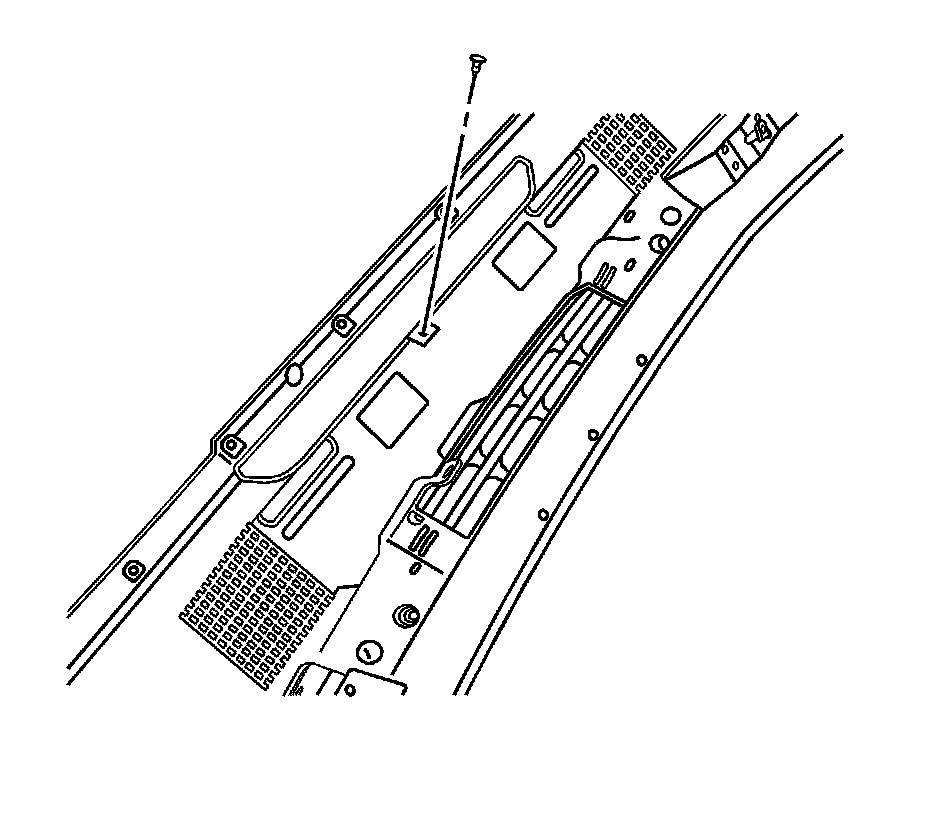

2. Remove the upper screw retainer from the energy absorber.




3. Remove the lower screw retainers from the energy absorber.

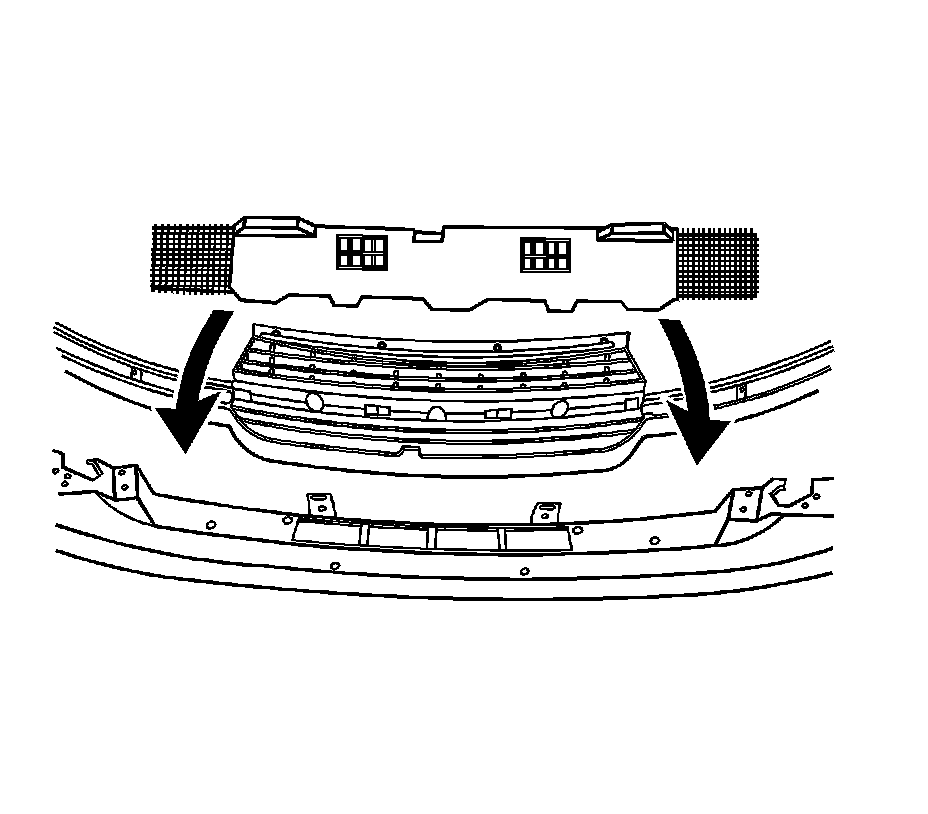

4. Remove the energy absorber from the front bumper fascia.

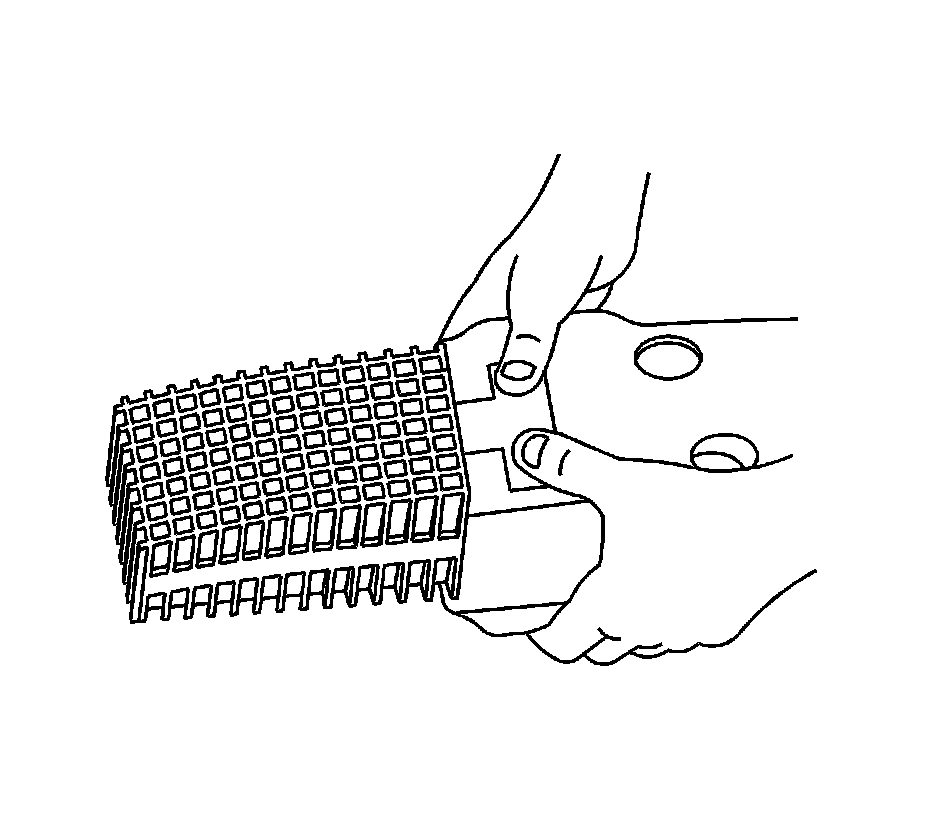

5. Remove the energy absorber extensions from the absorber.

Installation Procedure




1. Install the energy absorber extensions to the absorber. Press into place until fully seated.




2. Position the energy absorber to the front bumper fascia.




3. Install the lower screw retainers to the energy absorber. Hand tighten only.




4. Install the upper screw retainer to the energy absorber. Hand tighten only.
5. Install the front bumper fascia.
