P0756

DTC P0756 (2.2L)





Circuit Description with 4T40-E / 4T45-E Automatic Transaxle
The 2-3 shift solenoid (SS) valve is a normally-open exhaust valve that, in conjunction with the 1-2 shift solenoid (SS) valve, allows four different shifting combinations. Refer to Shift Solenoid Valve State and Gear Ratio. The 2-3 SS valve is attached to the control valve body, within the transmission.

The powertrain control module (PCM) monitors the actual gear ratio, and compares the actual gear ratio with the commanded gear ratio. DTC P0756 sets under two conditions:
^ A stuck ON 2-3 SS valve
^ A stuck ON 2-3 shift valve

When the PCM detects a 4-3-3-4 shift pattern, then DTC P0756 sets. DTC P0756 is a type A DTC.

DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC P0756 2-3 Shift Solenoid (SS) Valve Performance - No First or Second Gear

Conditions for Running the DTC
^ No MAF DTCs P010, P0102, or P0103.
^ No MAP DTCs P0106, P0107 or P0108.
^ No TP DTCs P0120 or P0220.
^ No VSS DTCs P0502 or P0503.
^ No ISS DTCs P0716 or P0717.
^ No TCC stuck ON DTC P0742.
^ No SS electrical DTCs P0973, P0974, P0976, or P0977.
^ The engine is running for 5 seconds or more.
^ The transmission fluid temperature (TFT) is between 20°C (68°F) and 130°C (266°F).
^ The throttle position (TP) is greater than 8 percent.
^ The input speed is 150 - 6,000 RPM.
^ The output speed is 150 RPM or more.
^ The engine torque is greater than 30 Nm (22 ft. lbs.).
^ The time since the last gear change is 0.30 seconds.

Conditions for Setting the DTC
^ The PCM commands 1st gear with the TCC slip speed between 200 and 1,850 RPM, the output speed is greater than 160 RPM, and the gear ratio is 0.61:1-1.87:1, 4th gear, for 2.5 seconds.
^ The PCM commands 2nd gear and the gear ratio is 0.91:1-1.07:1, 3rd gear, for 1.0 second.

Action Taken When the DTC Sets
^ The PCM illuminates the malfunction indicator lamp (MIL).
^ The PCM commands an immediate landing to 2nd gear.
^ The PCM commands maximum line pressure.
^ The PCM forces the TCC OFF.
^ The PCM inhibits TCC engagement.
^ The PCM freezes transmission adaptive functions.
^ The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Freeze Frame and Failure Records.
^ The PCM stores DTC P0756 in PCM history.

Conditions for Clearing the MIL/DTC
^ The PCM turns OFF the MIL during the third consecutive trip in which the diagnostic test runs and passes.
^ A scan tool can clear the MIL/DTC.
^ The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without an emission-related diagnostic fault occurring.
^ The PCM cancels the DTC default actions when the ignition switch is OFF long enough in order to power down the PCM.

Diagnostic Aids
^ If you clear DTC P0756, and then cannot reset DTC P0756, inspect for the following conditions:
^ Fluid contamination
^ Plugged fluid circuits
^ Restricted fluid circuits
^ Refer to Shift Solenoid Valve State and Gear Ratio.

Test Description





The numbers below refer to the step numbers on the diagnostic table.

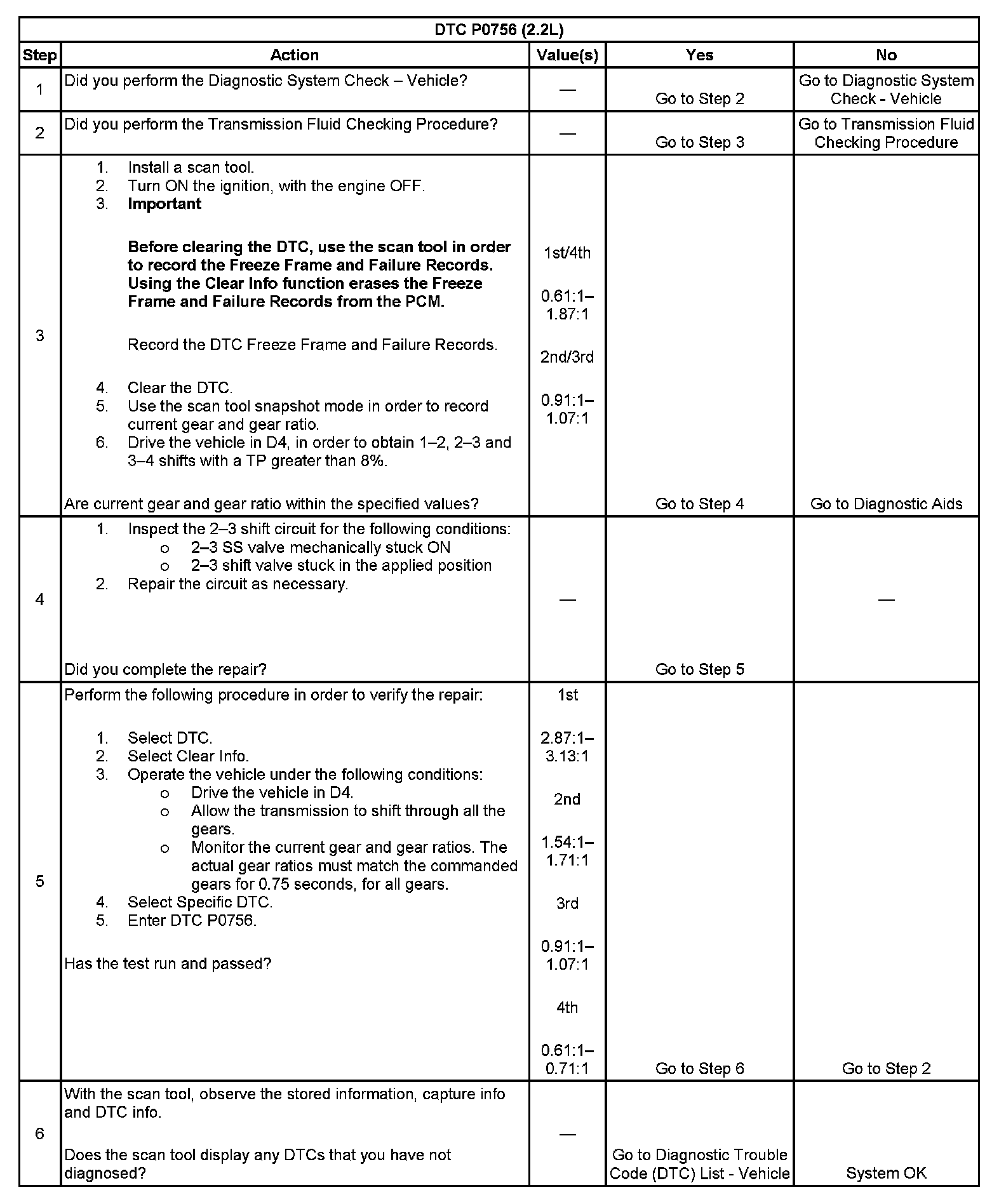

3. This step verifies a 4-3-3-4 shift pattern.
4. This step tests for a mechanical or hydraulic condition causing the 2-3 SS valve to be stuck ON, or the circuit to be applied.
