Home
>>
Chevrolet
>>
2005
>>
Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Diagrams
>>
Connector Views
>>

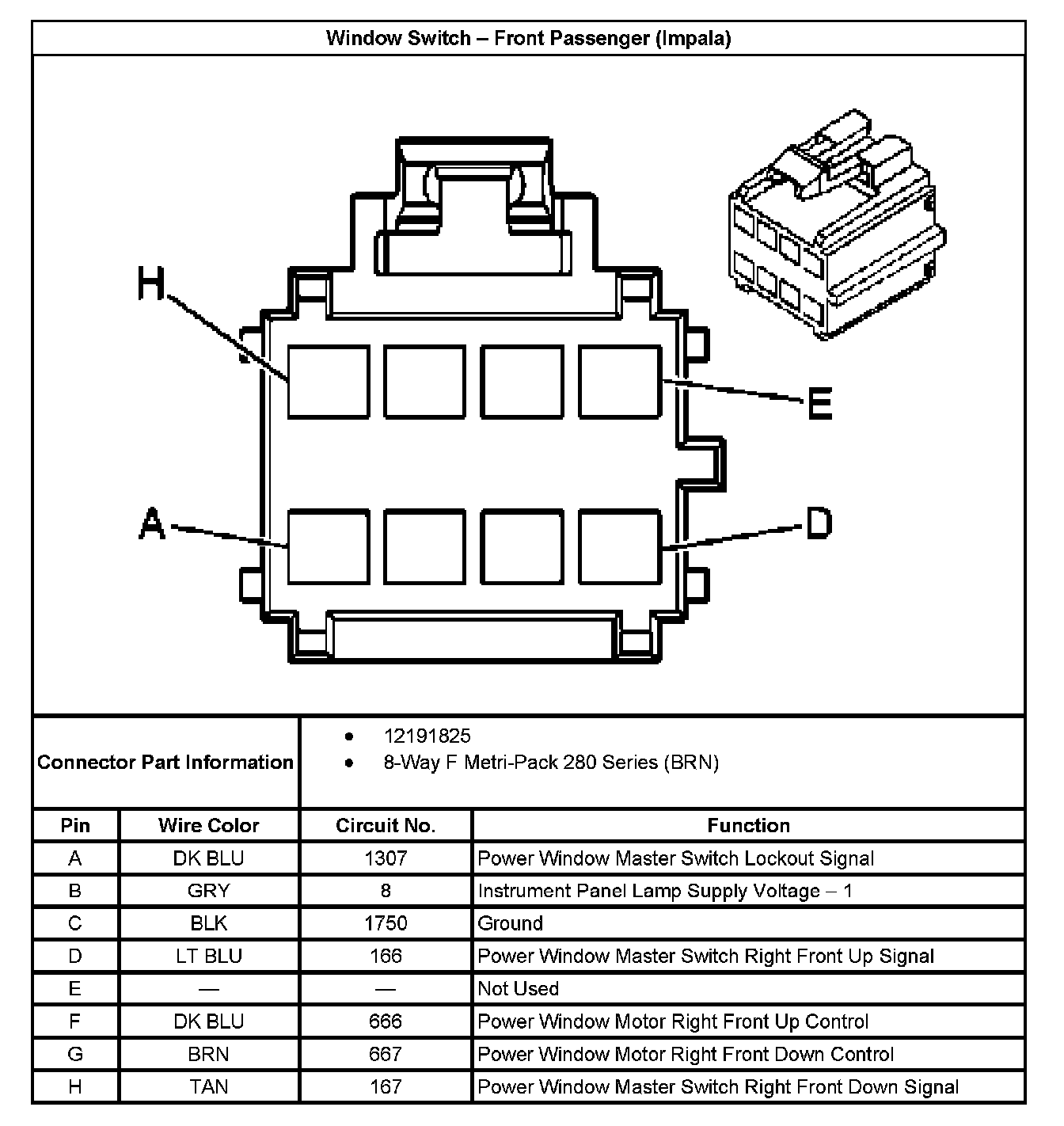

Window Switch - Front Passenger
Window Switch - Front Passenger
Window Switch - Front Passenger:
