Tie Rod End: Service and Repair

Rack and Pinion Outer Tie Rod End Replacement

^ Tools Required
- J 24319-B Universal Steering Linkage Puller

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.

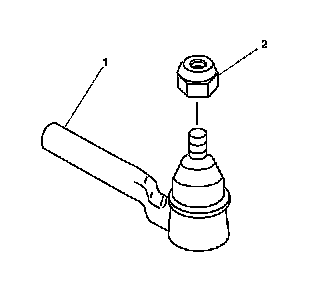

3. Remove the prevailing torque nut (2) from the outer tie rod assembly (1).

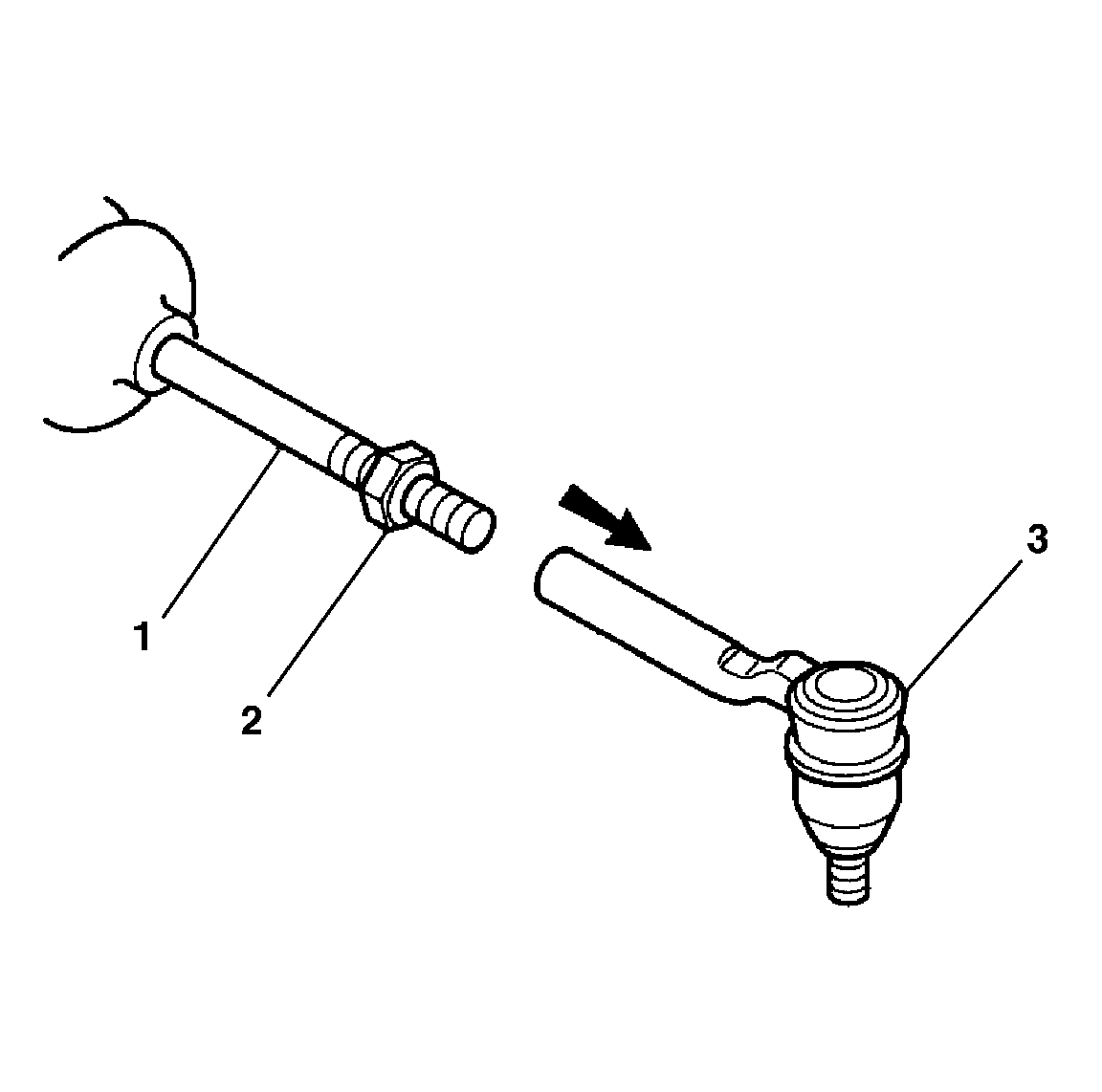

4. Loosen the jam nut (2) on the inner tie rod assembly (1).





Notice: Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

5. Remove the outer tie rod assembly from the steering knuckle using J 24319-B.





6. Remove the outer tie rod assembly (3) from the inner tie rod assembly (1).

Installation Procedure





1. Install the outer tie rod assembly (3) to the inner tie rod assembly (1). Do NOT tighten the jam nut (2).

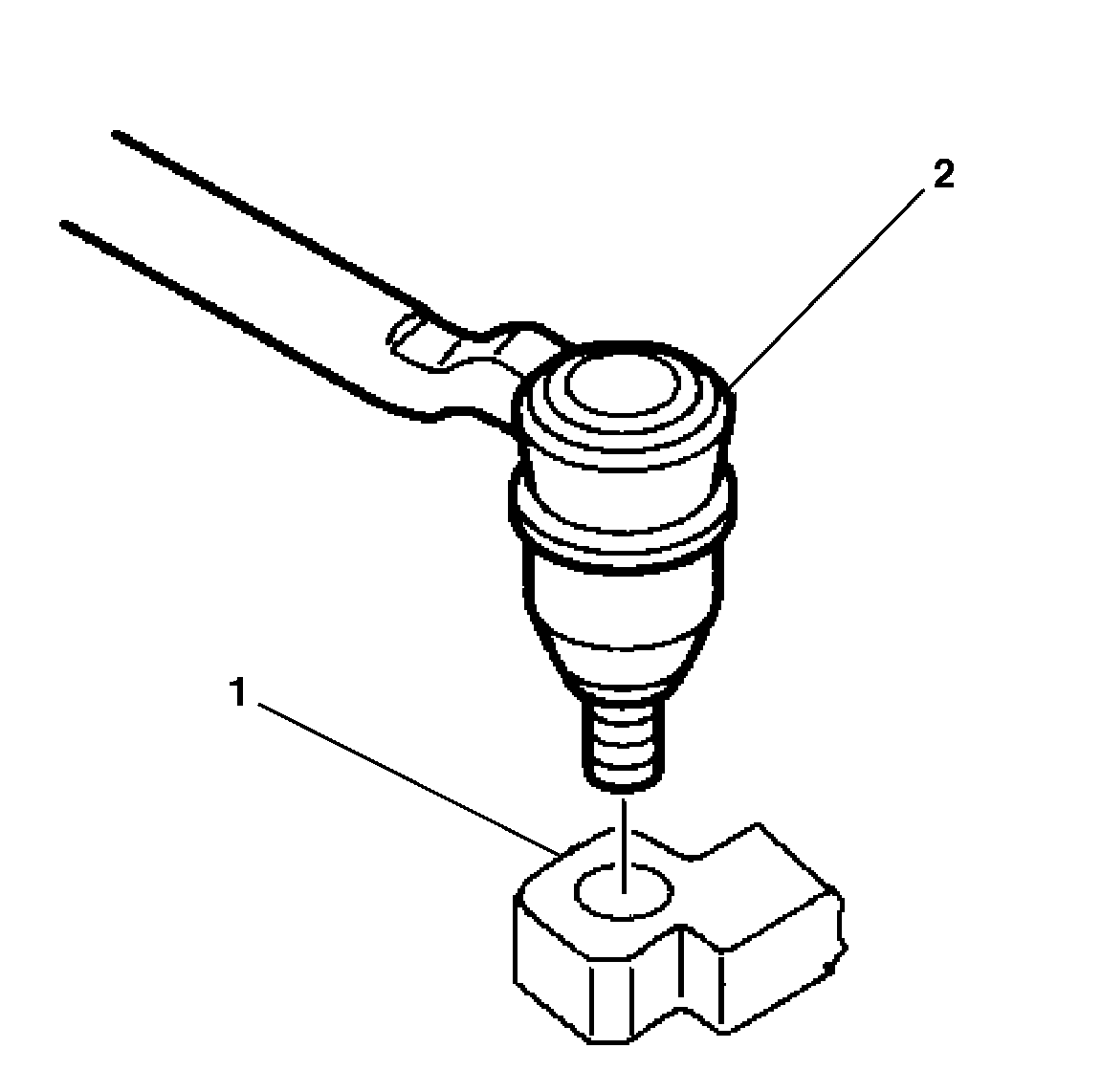

2. Install the outer tie rod assembly (2) to the steering knuckle (1).





Notice: Refer to Fastener Notice in Service Precautions.

3. Tighten the nut to 30 Nm (22 ft. lbs.) + 120 degrees of rotation.Visually inspect to ensure that 2 1/2 - 4 1/2 threads are visible past the nylon washer.





4. Install tire and wheel assembly.
5. Lower the vehicle.
6. Perform a front end alignment.
