Steering Shaft, Lower Bearing

Steering Shaft Lower Bearing Replacement

Removal Procedure





Caution: Refer to SIR Caution in Service Precautions.

1. Disable the Restraints system.
2. Remove the intermediate steering shaft.

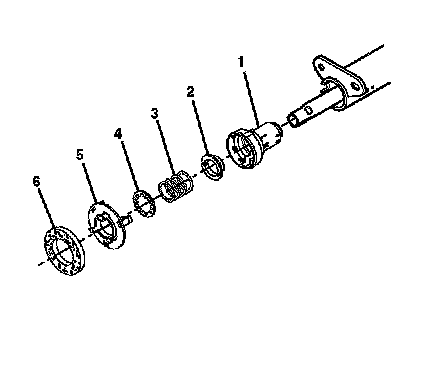

3. Remove these from the steering shaft:
a. Steering shaft seal (6)
b. Sensor retainer (5)
c. Lower spring retainer (4)
d. Lower bearing spring (3)
e. Lower bearing seat (2)
f. Adapter and bearing assembly (1)

Installation Procedure





1. Install these to the steering shaft:
a. Adapter and bearing assembly (1)
b. Lower bearing seat (2)
c. Lower bearing spring (3)
d. Lower spring retainer (4)
e. Sensor retainer (5)
f. Steering shaft seal (6)
2. Install the intermediate steering shaft.
3. Enable the Restraints system.
