Power Steering Pump Replacement

Power Steering Pump Replacement (3.4L)

Removal Procedure
1. Place a drain pan under the vehicle.
2. Remove the coolant recovery reservoir.
3. Remove the power steering pump pulley from the power steering pump.





4. Remove the ignition wiring harness near the power steering pump.
5. Disconnect these components from the power steering pump:
^ The power steering pressure line.
^ The power steering return hose.

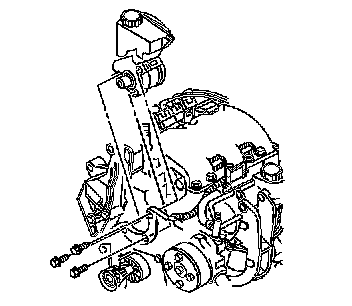

6. Remove the power steering pump mounting bolts from the power steering pump.
7. Remove the power steering pump assembly.
8. Remove the power steering pump reservoir from the power steering pump.

Installation Procedure





1. Install the power steering pump reservoir to the power steering pump.
2. Position the power steering pump assembly to the engine.

Notice: Install the power steering pump mounting bolts.

3. Tighten the power steering pump mounting bolts to 34 Nm (25 ft. lbs.).
4. Connect these components to the power steering pump:
^ The power steering pressure line.
^ The power steering return hose.
5. Install the ignition control wiring harness at the power steering pump.
6. Install the power steering pump pulley to the power steering pump.
7. Install the coolant recovery reservoir.
8. Fill the power steering system.
9. Bleed the power steering system.
10. Inspect the system for leaks.
11. Remove the drain pan from under the vehicle.
