Power Steering Pulley Replacement

Power Steering Pulley Replacement

^ Tools Required
- J 25033-C Power Steering Pump Pulley Installer
- J 25034-C Power Steering Pump Pulley Remover

Removal Procedure





1. Remove the power steering pump assembly from the vehicle.

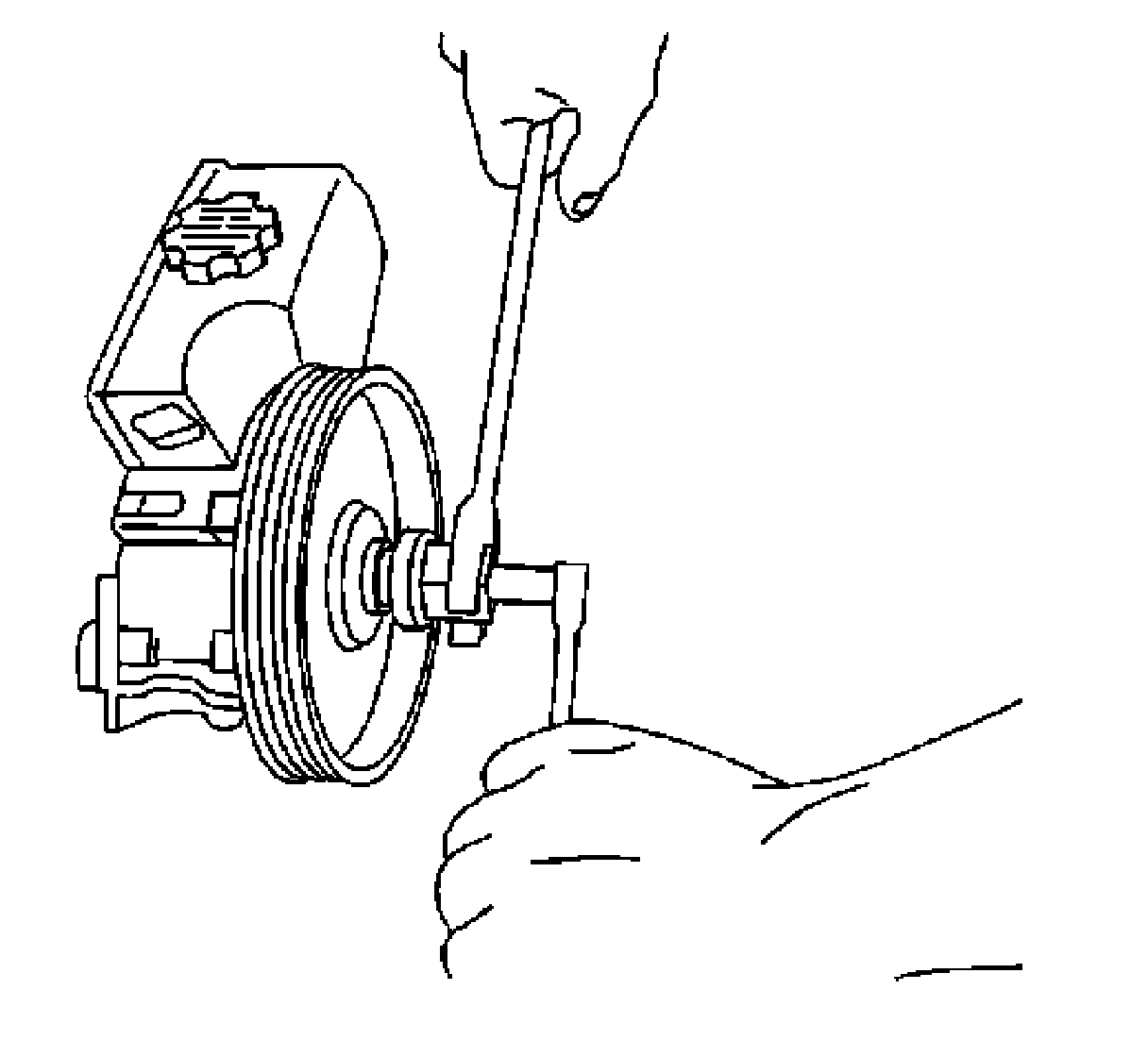

2. Using J 25034-C remove the power steering pump pulley from the power steering pump.

Installation Procedure

Important:
^ Never use a hammer to install the power steering pulley.
^ Do not use an arbor press to install the power steering pulley.
^ The face of the pulley hub must be flush with the end of the pump driveshaft.

1. Using J 25033-C install the power steering pump pulley to the power steering pump.





2. Install the power steering pump assembly to the vehicle.
