Home >> Chevrolet >> 2005 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Seat Belt Indicator Circuit Malfunction

Seat Belt Indicator Circuit Malfunction

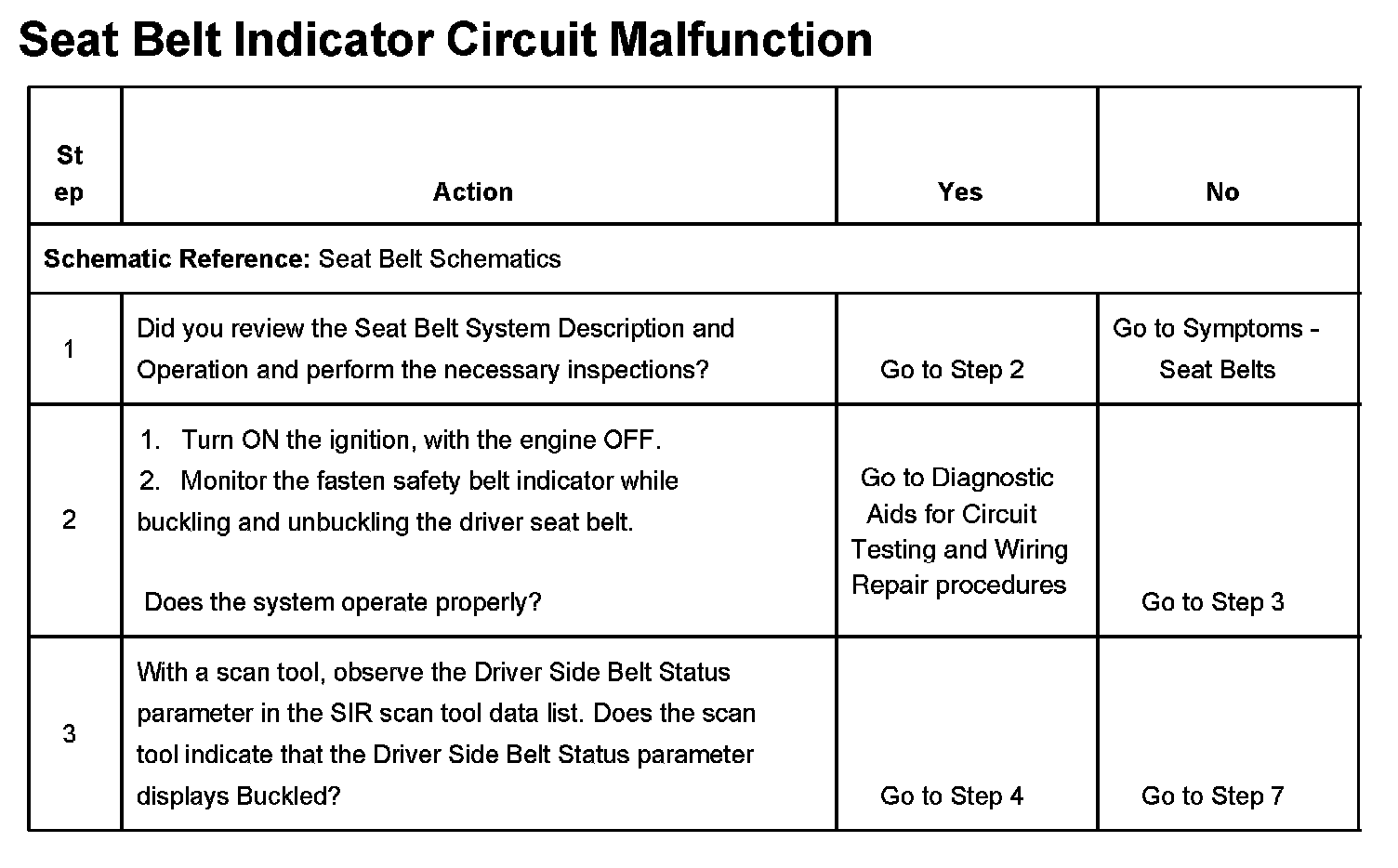

Steps 1-3:

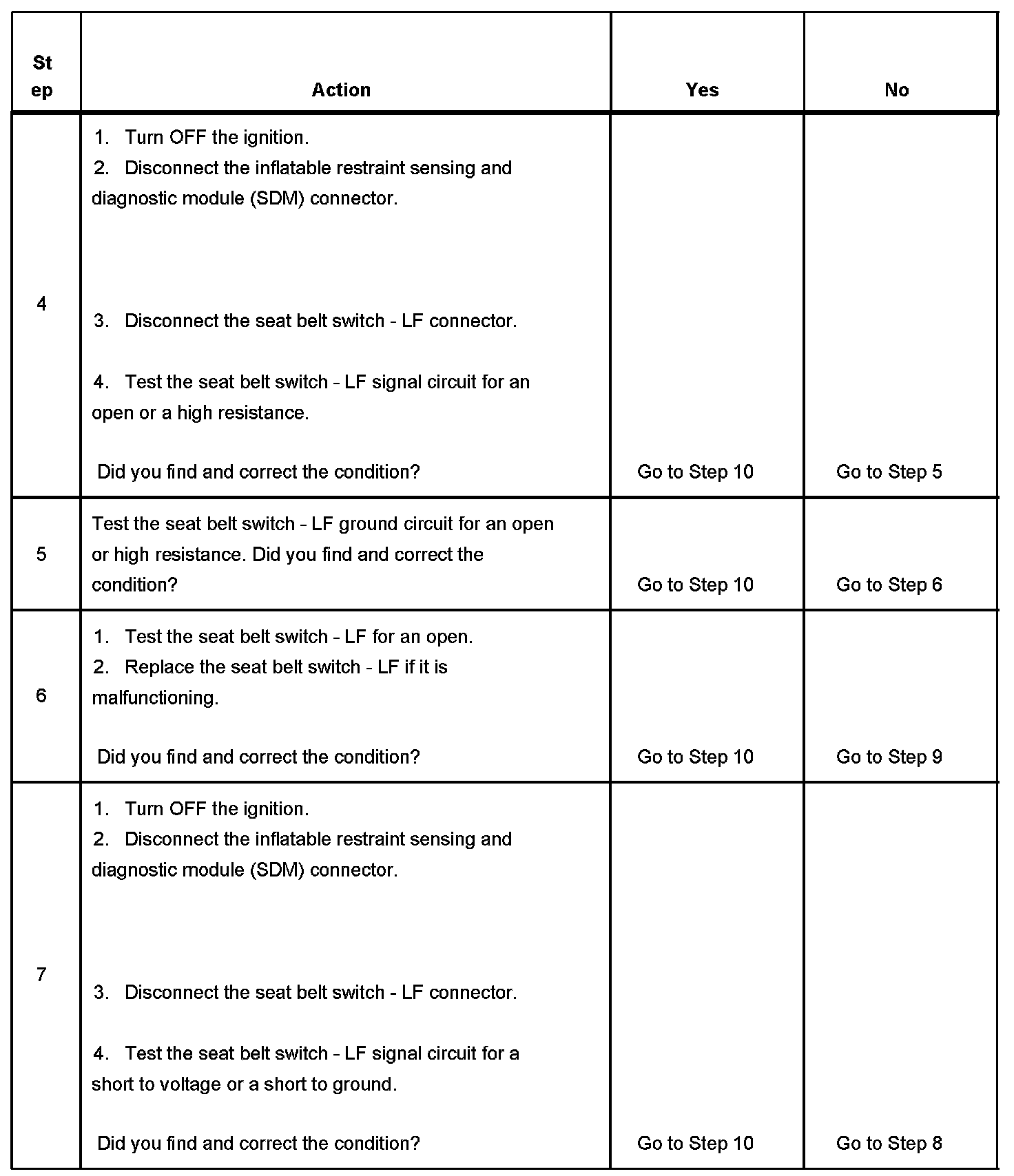

Steps 4-7:

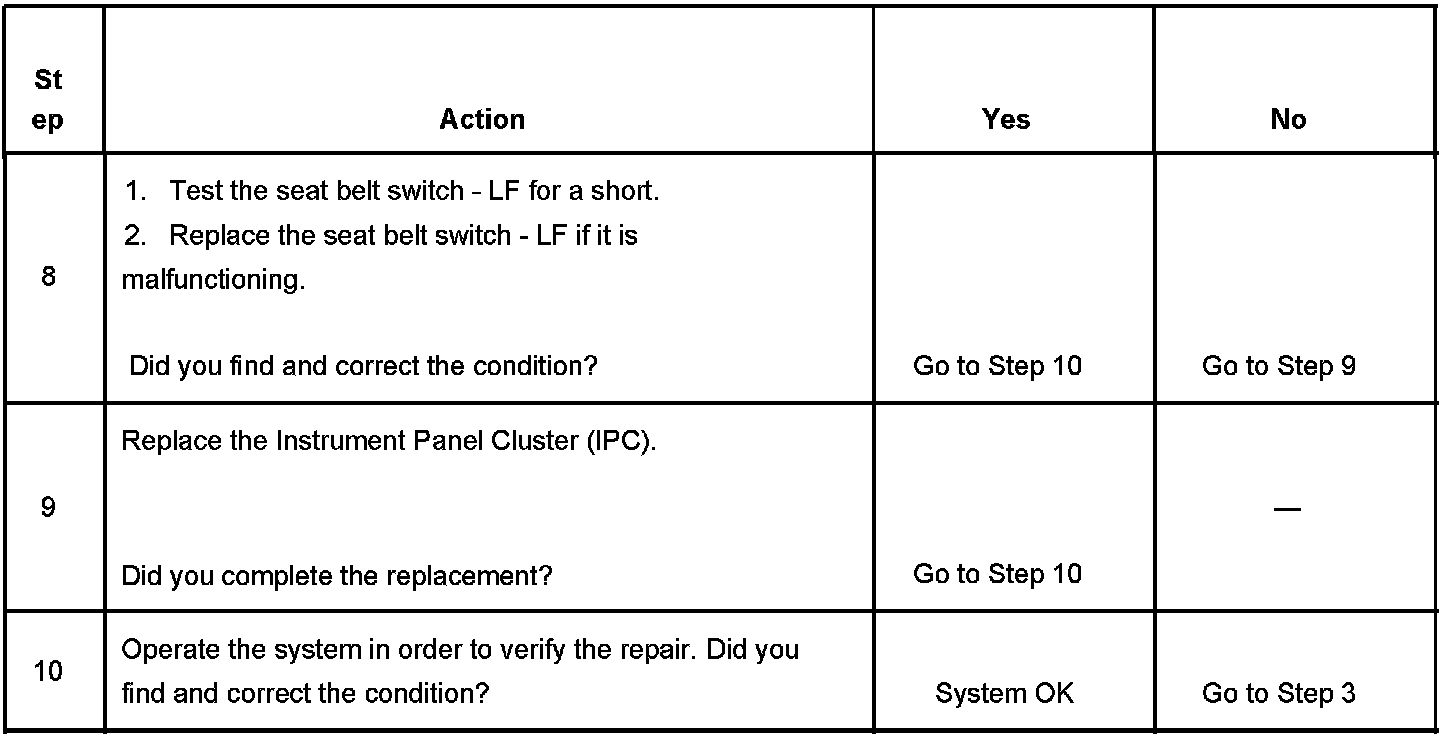

Steps 8-10:
