Seat Belt Retractor Replacement - Left Front

REMOVAL PROCEDURE

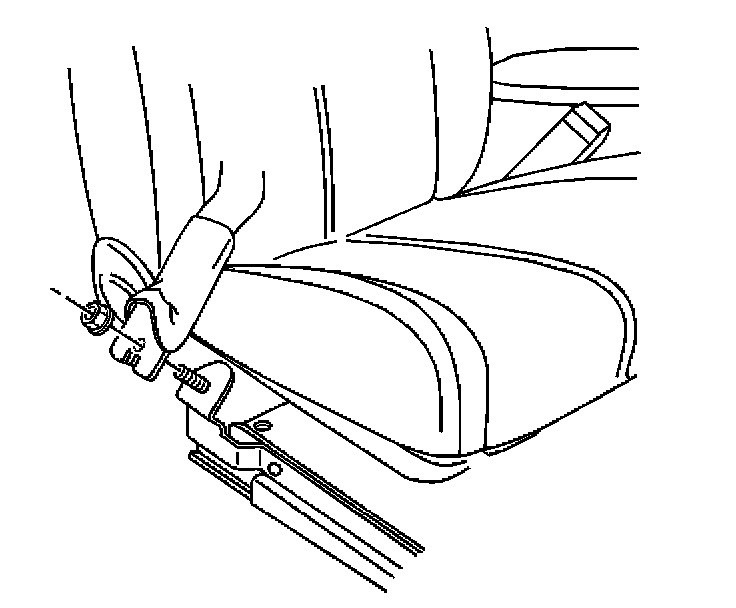

1. Remove the seat belt anchor nut from the seat stud.




2. Open the seat belt guide loop cover.

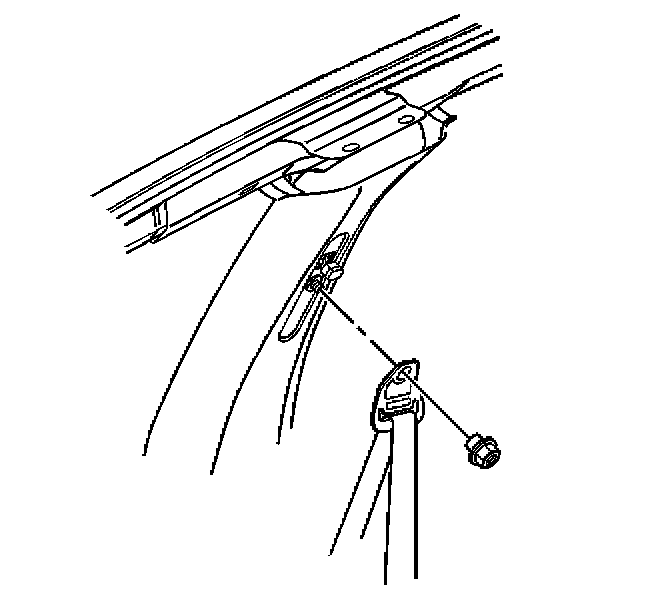

3. Remove the nut from seat belt guide loop.
4. Remove the seat belt guide loop from the guide adjuster bracket.
5. Remove the center pillar lower trim.

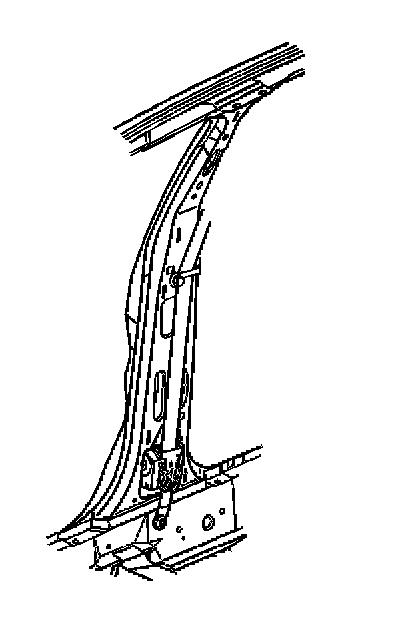

6. Remove the bolts from the seat belt intermediate guide.
7. Remove the seat belt intermediate guide from the center pillar.

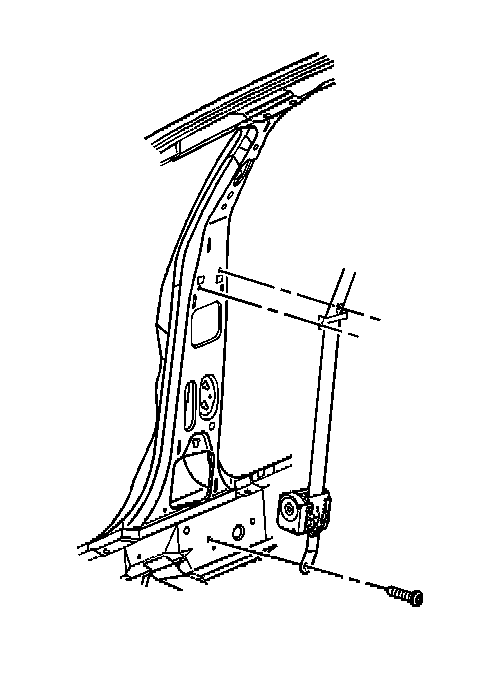

8. Remove the seat belt retractor bolt.
9. Remove the seat belt retractor from the center pillar.

INSTALLATION PROCEDURE

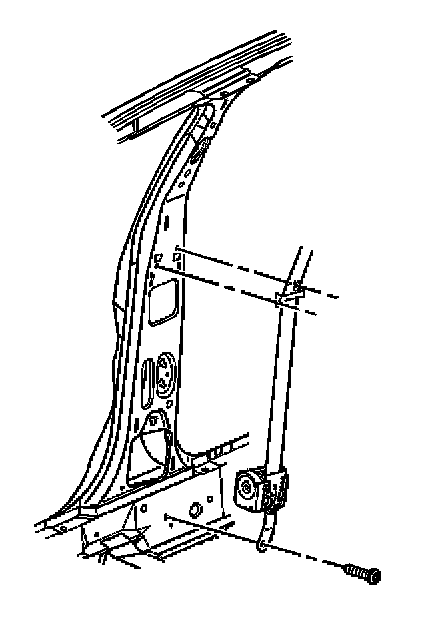

1. Install the seat belt retractor into the T-slot in the center pillar.
2. Install the seat belt retractor bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the seat belt retractor bolt to 68 N.m (50 lb ft).

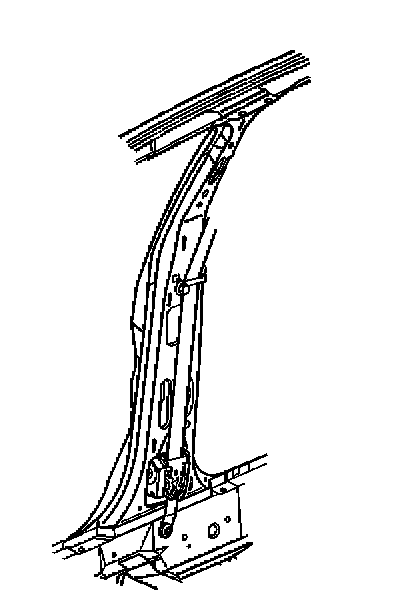

3. Install the seat belt intermediate guide to the center pillar.
4. Install the seat belt intermediate guide bolts.

Tighten
Tighten the seat belt intermediate guide bolts to 10 N.m (89 lb in).

5. Install the center pillar lower trim.

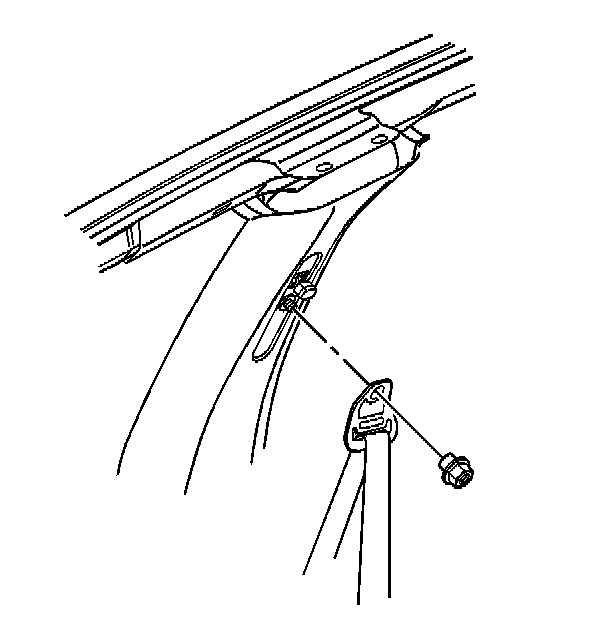

6. Position the seat belt guide loop to the guide adjuster bracket.
7. Install the nut to the seat belt guide loop.

Tighten
Tighten the nut to 42 N.m (31 lb ft).

8. Close the seat belt guide loop cover.

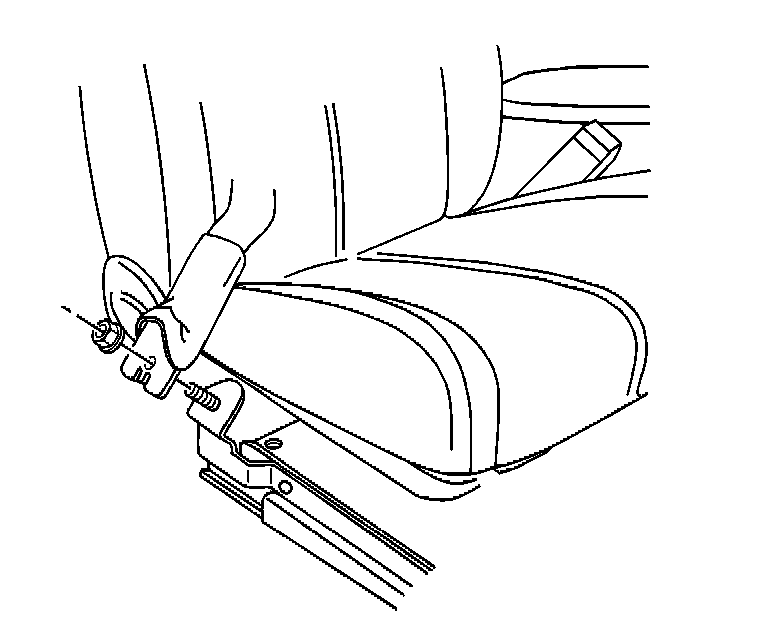

9. Install the seat belt anchor nut to the seat stud.

Tighten
Tighten the nut to 42 N.m (31 lb ft).
