Seat Belt Buckle Replacement - Left Front

REMOVAL PROCEDURE

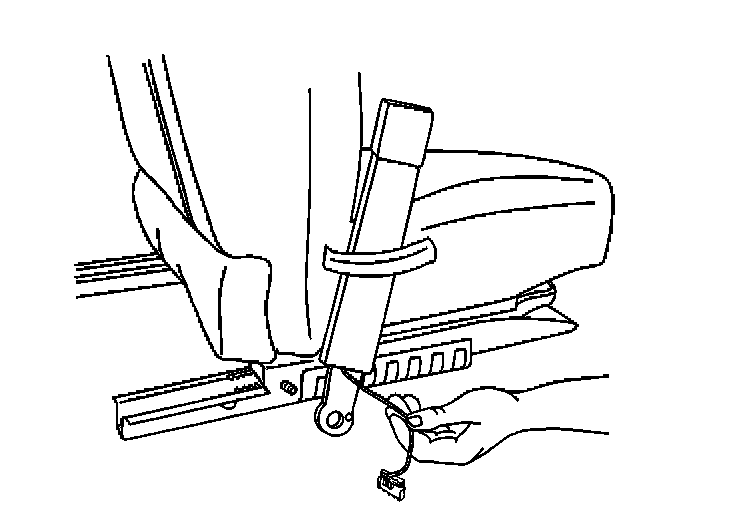

1. Position the left front seat to the forward position.

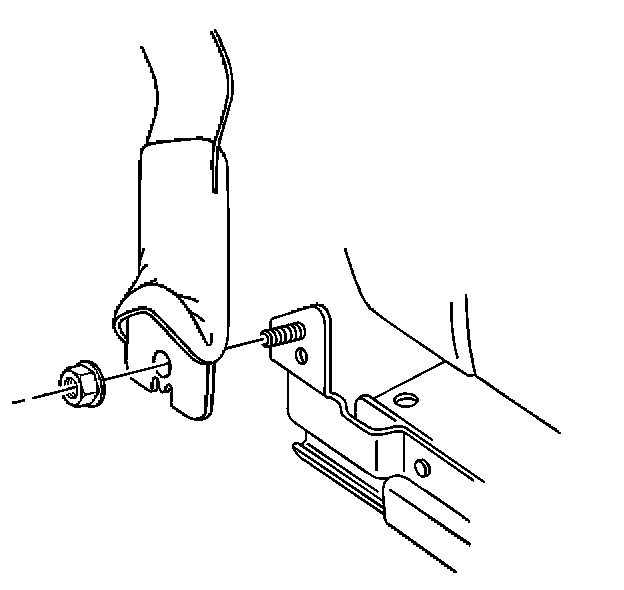

2. Remove the nut from the seat belt buckle anchor stud.




3. Disconnect the electrical connector from the seat belt buckle.
4. Remove the seat belt buckle from the left front seat.

INSTALLATION PROCEDURE

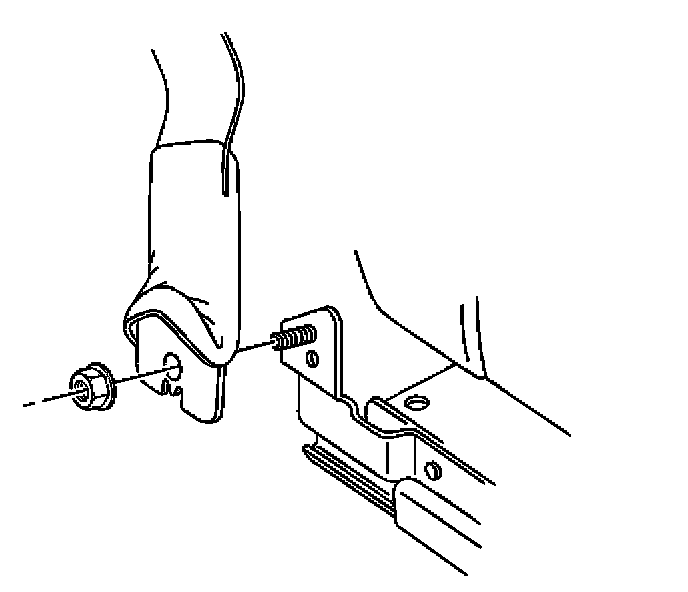

1. Install the seat belt buckle to the left front seat.
2. Install the nut to the seat belt anchor stud.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the seat belt buckle anchor nut to 42 N.m (31 lb ft).




3. Connect the electrical connector to the seat belt buckle.
4. Position the left front seat to the original position.
