Seat Belt Buckle Replacement - Center Front (Split Bench)

REMOVAL PROCEDURE




1. Remove the front seat.

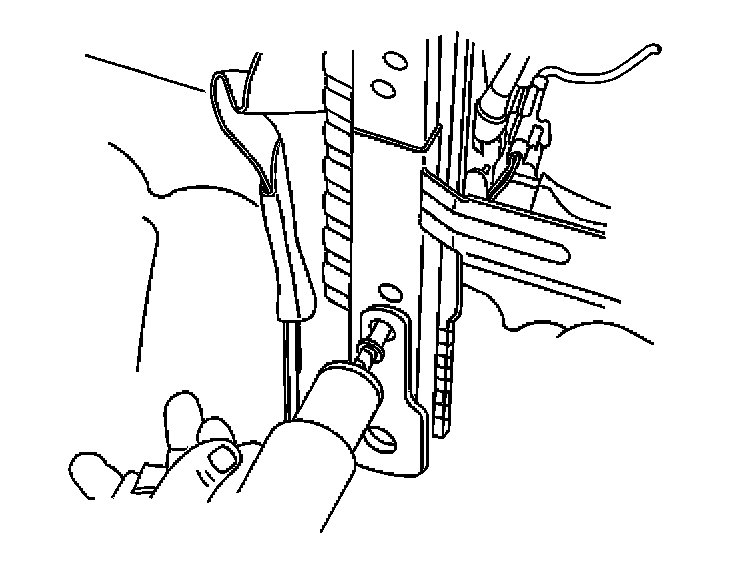

2. Using a 6.35 mm (1/4 in) drill bit, drill out the rivet that retains the front seat belt buckle to the rear of the front seat track.

IMPORTANT: When drilling out the rivet do not enlarge the rivet hole.

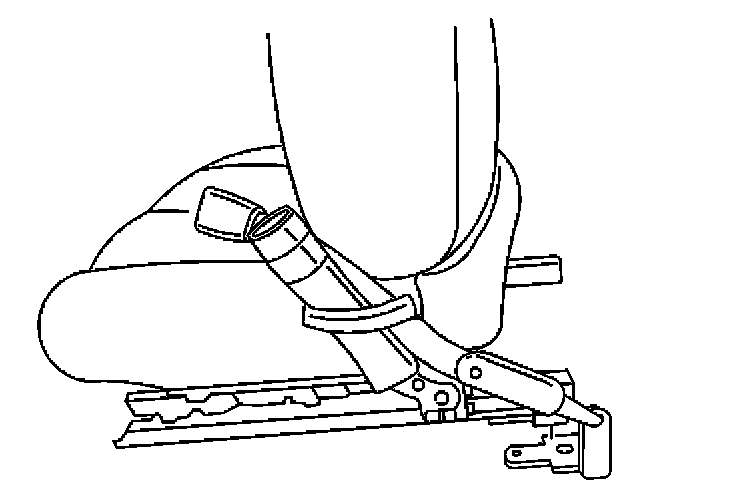

3. Remove the front seat belt buckle from the front seat track.

INSTALLATION PROCEDURE

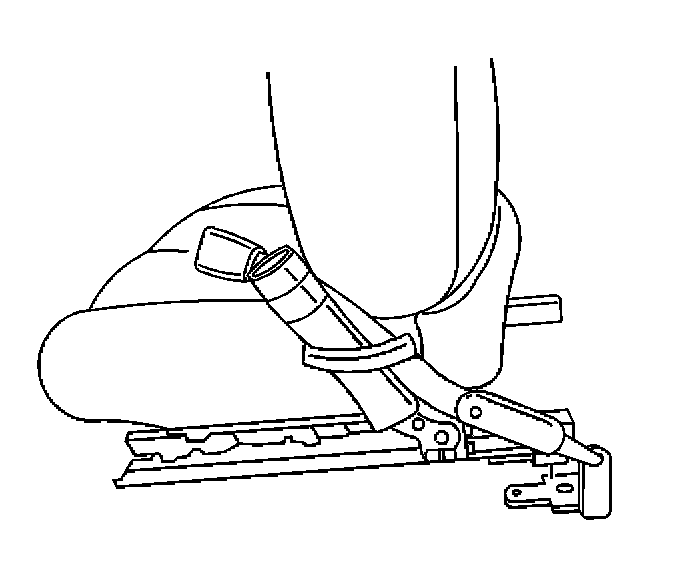

1. Position the front seat belt buckle anchor to the front seat track.

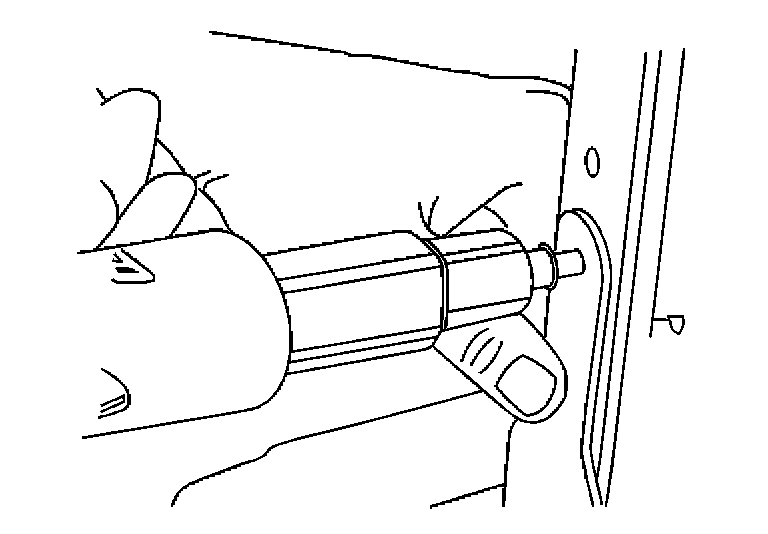

2. Install the new rivet which secures the front seat belt buckle to the rear of the front seat track.

IMPORTANT: The rivet is only used for installation alignment.

3. Install the front seat.
