Junction Block - Underhood Wire Entry Pinout - Bottom
Junction Block - Underhood Wire Entry Pinout - Bottom

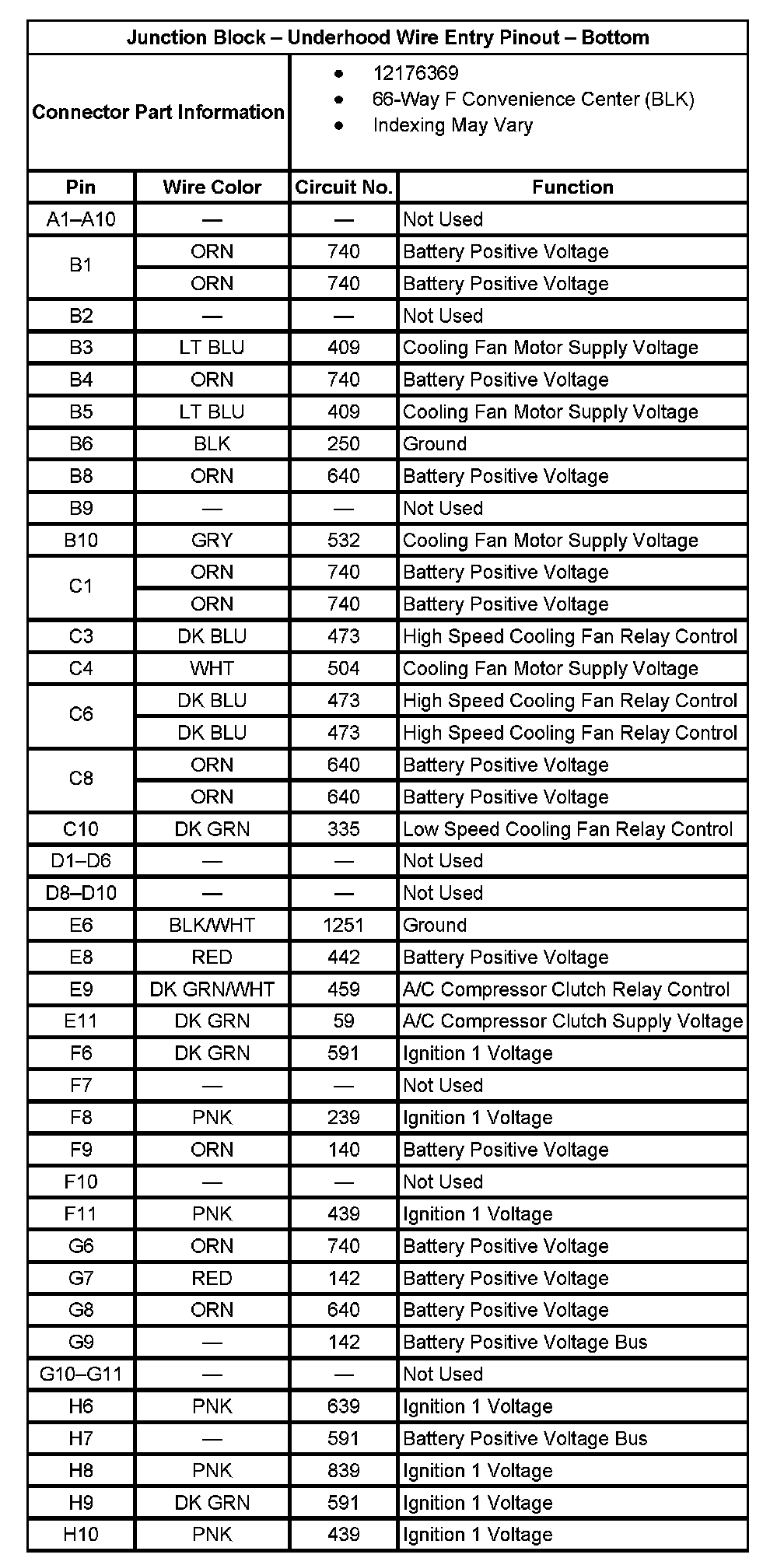

Junction Block - Underhood Wire Entry Pinout - Bottom Part 1:
Junction Block - Underhood Wire Entry Pinout - Bottom Part 2:
