Junction Block - Underhood Wire Entry Pinout - Top
Junction Block - Underhood Wire Entry Pinout - Top

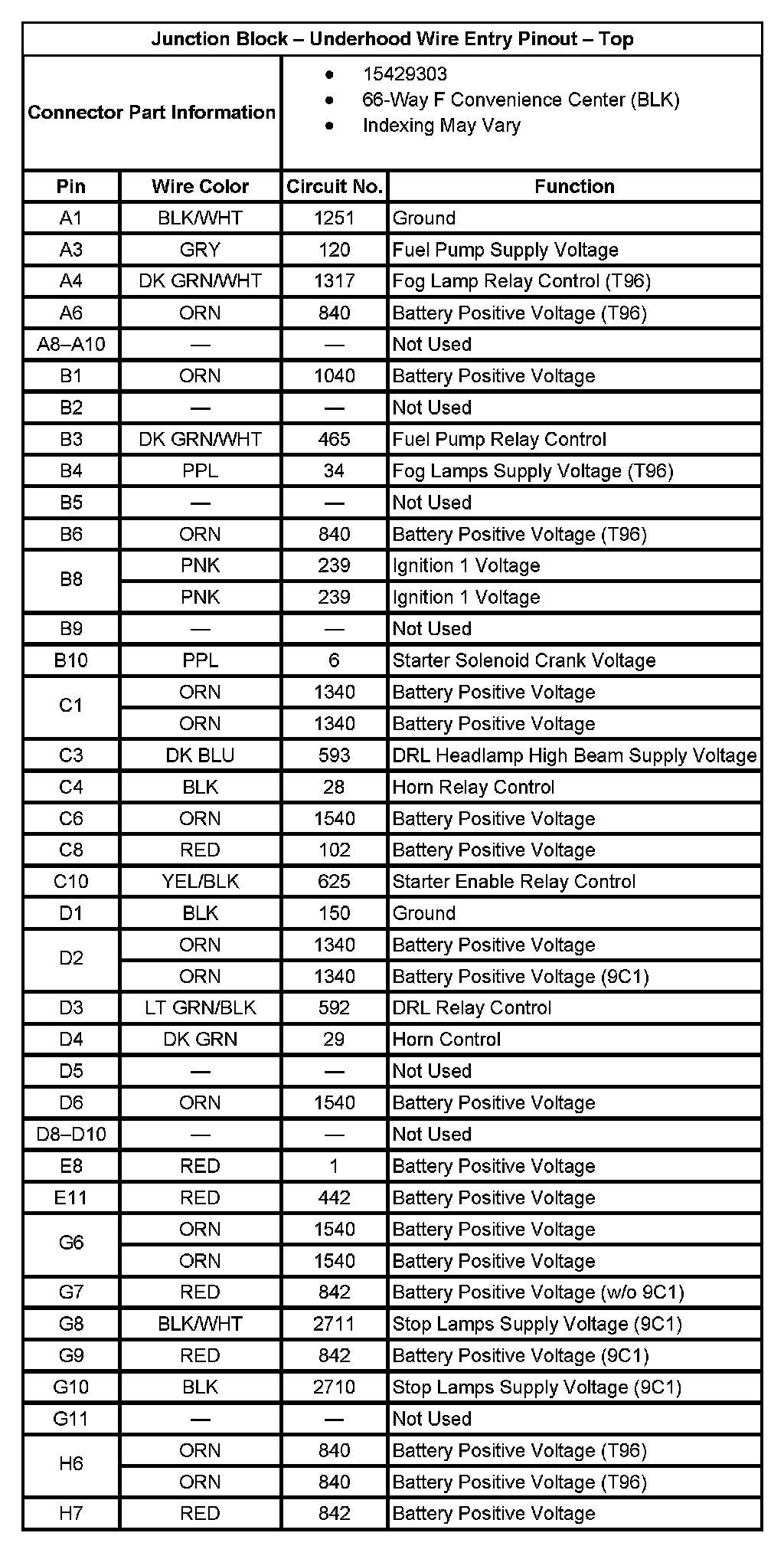

Junction Block - Underhood Wire Entry Pinout - Top Part 1:

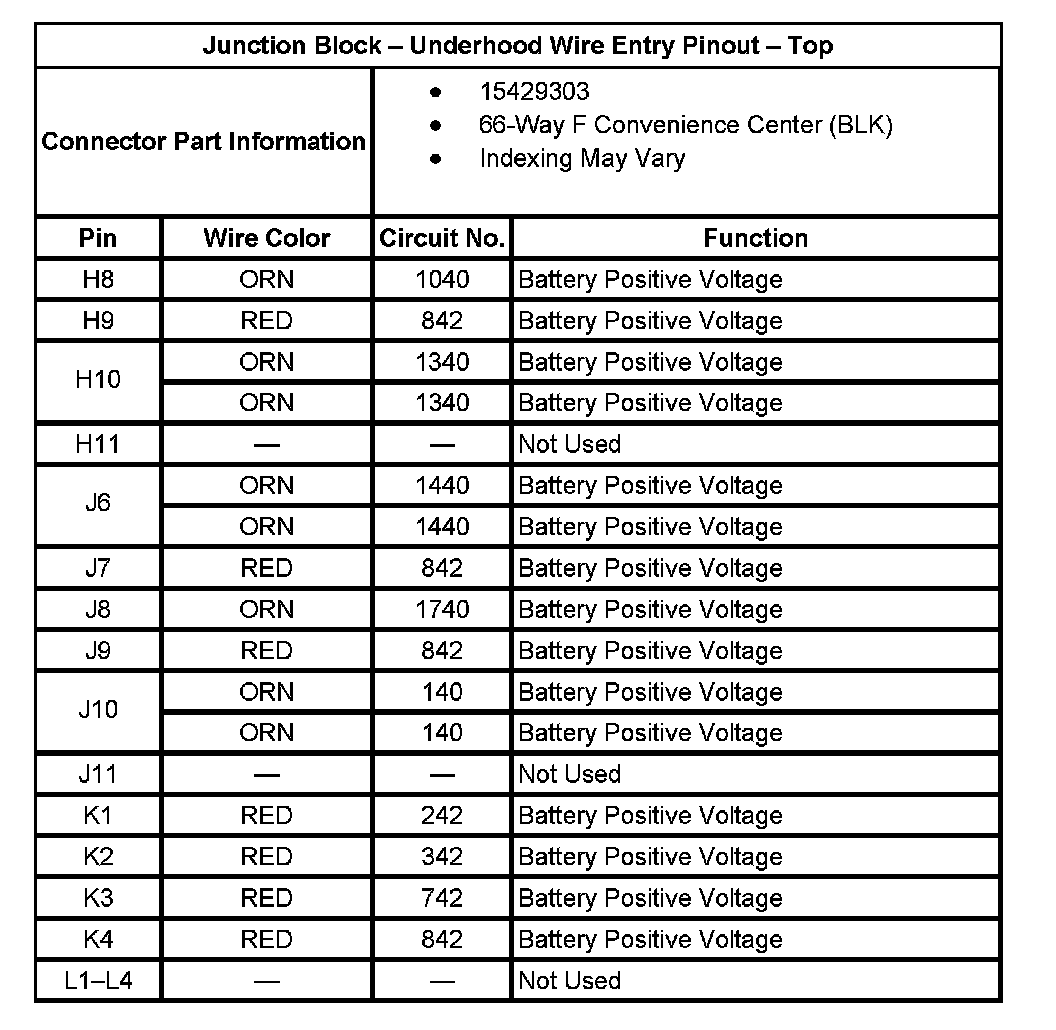

Junction Block - Underhood Wire Entry Pinout - Top Part 2:
