HEATER HOSE REPLACEMENT - INLET

TOOLS REQUIRED
J 38185Hose Clamp Pliers

REMOVAL PROCEDURE
1. Drain the cooling system. Refer to Draining and Filling Cooling System in Cooling System.




2. Use J 38185 in order to position aside the heater hose inlet clamp.
3. Disconnect the heater inlet hose (3) from the inlet pipe.




4. Use J 38185 in order to position aside the heater core inlet hose clamp.
5. Disconnect the heater inlet hose from the heater core.
6. Remove the heater inlet hose.

INSTALLATION PROCEDURE
1. Install the heater inlet hose.




2. Connect the heater inlet hose to the heater core.
Use J 38185 in order to secure the heater core hose inlet clamp.

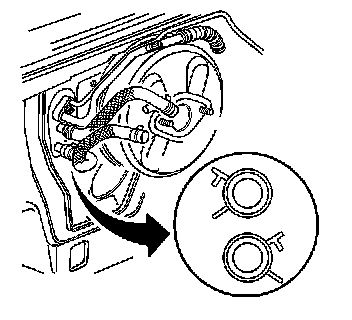

IMPORTANT: Position heater core hose clamps in the indicated location.




3. Connect the heater inlet hose (3) to the inlet pipe.
4. Use J 38185 in order to secure the heater hose inlet clamp.
5. Refill the cooling system. Refer to Draining and Filling Cooling System in Cooling System.
