Compartment Lid Lamp Replacement - Rear (SEO) (With RPO Code T53)

COMPARTMENT LID LAMP REPLACEMENT - REAR

REMOVAL PROCEDURE




1. Open the rear compartment.

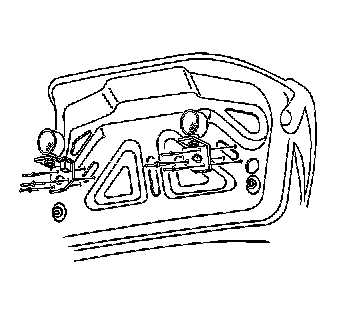

2. Disconnect the electrical connectors from the rear compartment lid lamp(s).
3. Disconnect the electrical connector from the flasher fuse (1).
4. Remove the flasher fuse (1) if required.




5. Drill out the rivets from the rear compartment lid lamp bracket(s).
6. Remove the rear compartment lid lamp(s) from the rear compartment lid.

INSTALLATION PROCEDURE




1. Position the rear compartment lid lamp(s) from the rear compartment lid.
2. Install the rivets to the rear compartment lid lamp bracket(s).

NOTE: Refer to Fastener Notice in Service Precautions.




3. Install the flasher fuse (1) if required.
4. Connect the electrical connector to the flasher fuse (1).
5. Connect the electrical connectors to the rear compartment lid lamp(s).
6. Close the rear compartment.
