Air Outlet Replacement - Side Window

AIR OUTLET REPLACEMENT - SIDE WINDOW

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) upper trim pad.

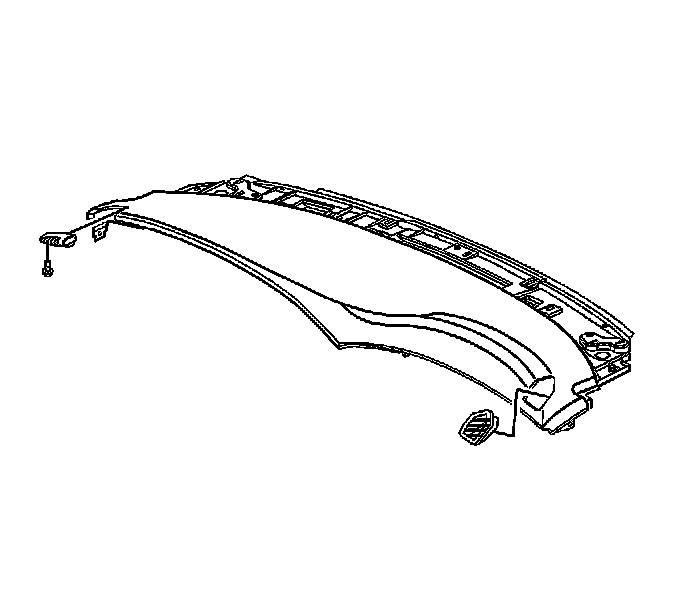

2. If required, remove the air outlet screw. Monte Carlo shown, Impala similar.
3. Disengage the air outlet retainers. Remove the air outlet.

INSTALLATION PROCEDURE




1. Install the air outlet to the I/P upper trim pad and engage the air outlet retainers.
2. If required, install the air outlet screw. Monte Carlo shown, Impala similar.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screw to 2 N.m (18 lb in).

3. Install the I/P upper trim pad.
