Engine Oil Cooler Replacement - Auxiliary
Engine Oil Cooler Replacement - Auxiliary
Removal Procedure
1. Remove the radiator air baffle retainers.
2. Tilt the rear of the air baffle upward slightly. Slide the air baffle rearward in order to disengage the upper and lower clips of the air baffle from the fascia support.
3. Remove the radiator air baffle.
4. Remove the right engine splash shield.
5. Remove the support clip from the engine oil cooler lines
6. Reposition the hose clamps on the power steering cooler lines.
7. Remove the power steering oil cooler lines from the power steering cooler.
8. Remove the engine oil cooler lines from the engine oil cooler.

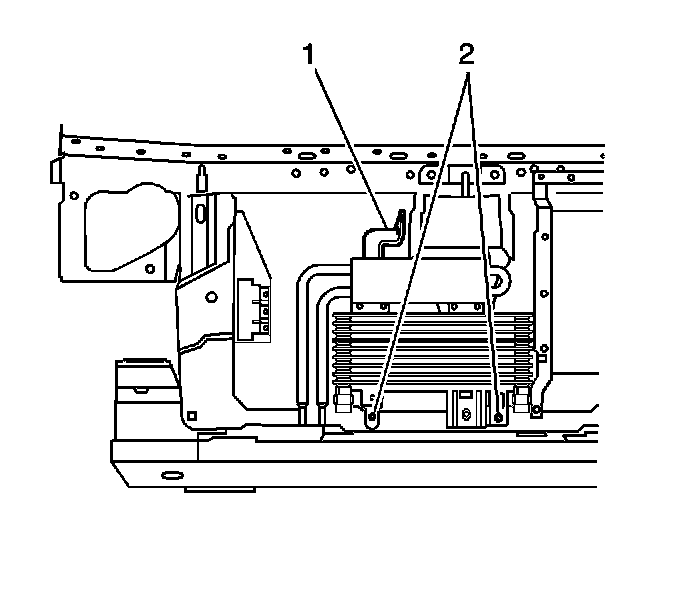

9. Remove the upper bolt (1) from the engine oil cooler/power steering cooler.
10. Remove the lower bolts (2) from the engine oil cooler/power steering cooler.
11. Remove the engine oil cooler/power steering cooler from the vehicle.
Installation Procedure
1. Install the engine oil cooler/power steering cooler to the vehicle.
2. Notice: Refer to Fastener Notice in Service Precautions.
Install the upper bolt (1) to the engine oil cooler/power steering cooler bracket.
^ Tighten the bolt to 2 Nm (18 inch lbs.).
3. Install the lower bolts (2) to the engine oil cooler/power steering cooler bracket.
^ Tighten the bolts to 2 Nm (18 inch lbs.).
4. Install the engine oil cooler lines to the engine oil cooler.
5. Install the power steering oil cooler lines to the power steering cooler.
6. Reposition the hose clamps on the power steering cooler lines.
7. Install the support clip to the engine oil cooler lines.
8. Install the right engine splash shield.
9. Position the radiator air baffle to the vehicle. Tilt the rear of the air baffle upward slightly. Position the upper clip of the air baffle to the lower edge of the front fascia support C-channel.
10. Slide the baffle towards the front of the vehicle in order to completely engage the upper and lower clips of the baffle onto the fascia support.
11. Align the tabs at the rear of the air baffle to the openings in the upper radiator support.
12. Install the radiator air baffle retainers.
13. Add the proper amount of engine oil and power steering fluid.
