Engine Mount Strut Bracket Replacement - Upper Radiator Support

Engine Mount Strut Bracket Replacement - Upper Radiator Support

Removal Procedure





1. Remove the engine mount strut from the engine mount strut bracket at the upper radiator support.





2. Remove the horizontal bolt from the engine mount strut bracket.
3. Remove the vertical bolts from the engine mount strut bracket.
4. Remove the engine mount strut bracket from the upper radiator support.

Installation Procedure

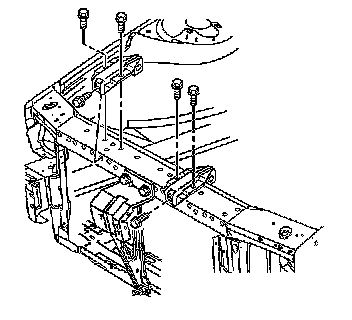

1. Position the engine mount strut bracket over the upper radiator support. Make sure that the engine mount strut bracket and the engine mount strut are aligned to the proper holes of the upper radiator support.

2. Notice: Refer to Fastener Notice in Service Precautions.

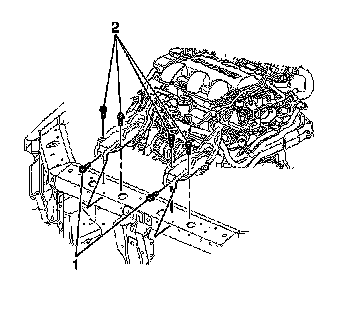

Install the vertical bolts (2) to the engine mount strut bracket.
^ Tighten the engine mount strut bracket bolts to 28 Nm (21 ft. lbs.).
3. Install the horizontal bolt (1) to the engine mount strut bracket.
^ Tighten the engine mount strut bracket bolt to 28 Nm (21 ft. lbs.).
4. Install the engine mount strut to the engine mount strut bracket at the upper radiator support.
