Engine Mount Strut Bracket Replacement - Right

Engine Mount Strut Bracket Replacement - Right

Removal Procedure
1. Disconnect the battery ground (negative) cable.





2. Remove the right engine mount strut from the right engine mount strut bracket.





3. If equipped with oil cooler, remove the oil cooler pipe bracket bolt from the right engine mount strut bracket.
4. Reposition the air conditioning compressor.

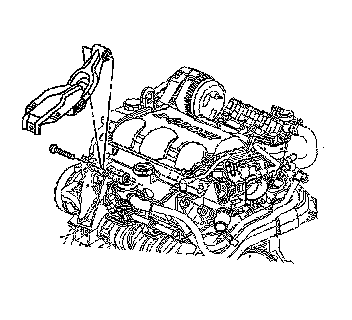

5. Remove the vertical bolt from the right engine mount strut bracket.
6. Remove the right engine mount strut bracket.

Installation Procedure

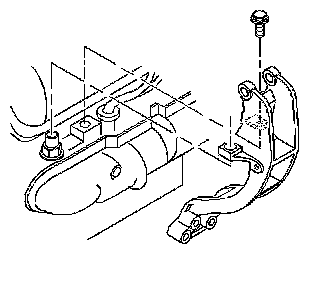

1. Position the right engine mount strut bracket over the pin locator.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the vertical bolt through the right engine mount strut bracket to the cylinder head.
^ Tighten the engine mount strut bracket bolt to 50 Nm (37 ft. lbs.).
3. Install the air conditioning compressor.

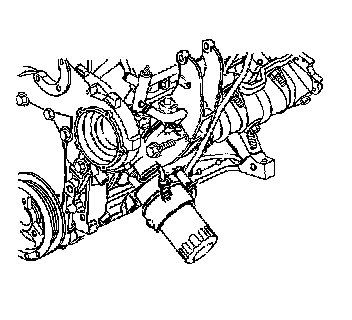

4. If equipped with oil cooler, install the oil cooler pipe bracket bolt to the right engine mount strut bracket.
^ Tighten the oil cooler pipe bracket bolt to 10 Nm (89 inch lbs.).





5. Install the right engine mount strut to the right engine mount strut bracket.
6. Connect the battery ground (negative) cable.
