Engine Mount Bracket Replacement - Right

Engine Mount Bracket Replacement - Right

Removal Procedure
1. Disconnect the battery ground cable.
2. Remove the throttle body air inlet duct.
3. Remove the engine mount struts.
4. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
5. Remove the three-way catalytic converter pipe from the right exhaust manifold.
6. Remove the right front wheel and tire.
7. Remove the right engine splash shield.

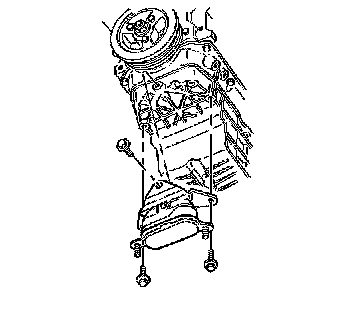

8. Remove the bolts which secure the engine mount bracket to the oil pan.
9. Install the engine support fixture.
10. Raise the engine.

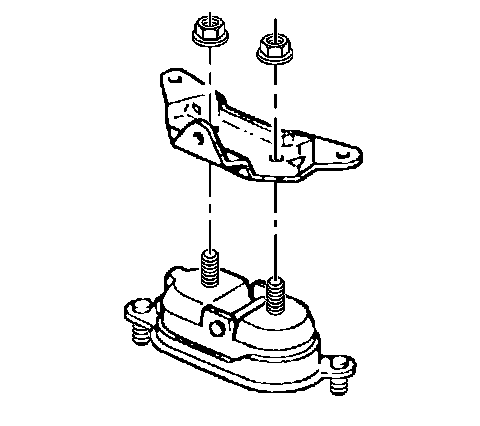

11. Remove the engine mount upper nuts.
12. Remove the engine mount bracket from the engine mount.

Installation Procedure





1. Install the engine mount bracket to the engine mount.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the engine mount upper nuts.
^ Tighten the upper nuts to 43 Nm (32 ft. lbs.).





3. Install the engine mount bracket to the oil pan.
4. Install the bolts which secure the engine mount bracket to the oil pan.
^ Tighten the bracket bolts to 58 Nm (43 ft. lbs.).
5. Lower the vehicle.
6. Lower the engine.
7. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
8. Install the right engine splash shield.
9. Install the right front wheel and tire.
10. Connect the three-way catalytic converter pipe to the right exhaust manifold.
11. Lower the vehicle.
12. Install the engine mount struts.
13. Install the throttle body air inlet duct.
14. Connect the battery ground cable.
