Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Switch - Driver
Window Switch - Driver

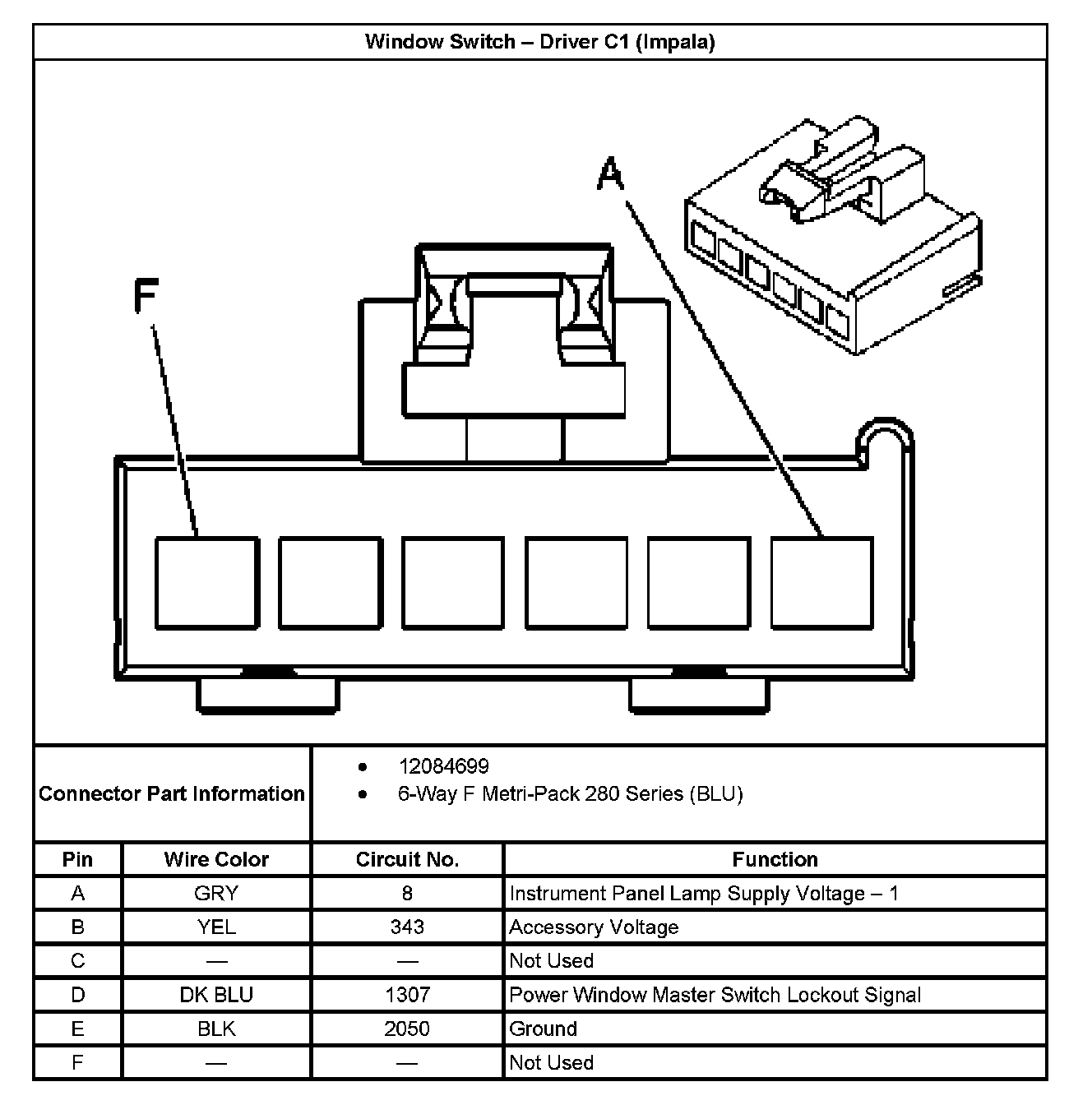

Window Switch - Driver C1:
Window Switch - Driver C2:
