Emergency Vehicle Rear Window Panel Lamp
Emergency Vehicle Rear Window Panel Lamp

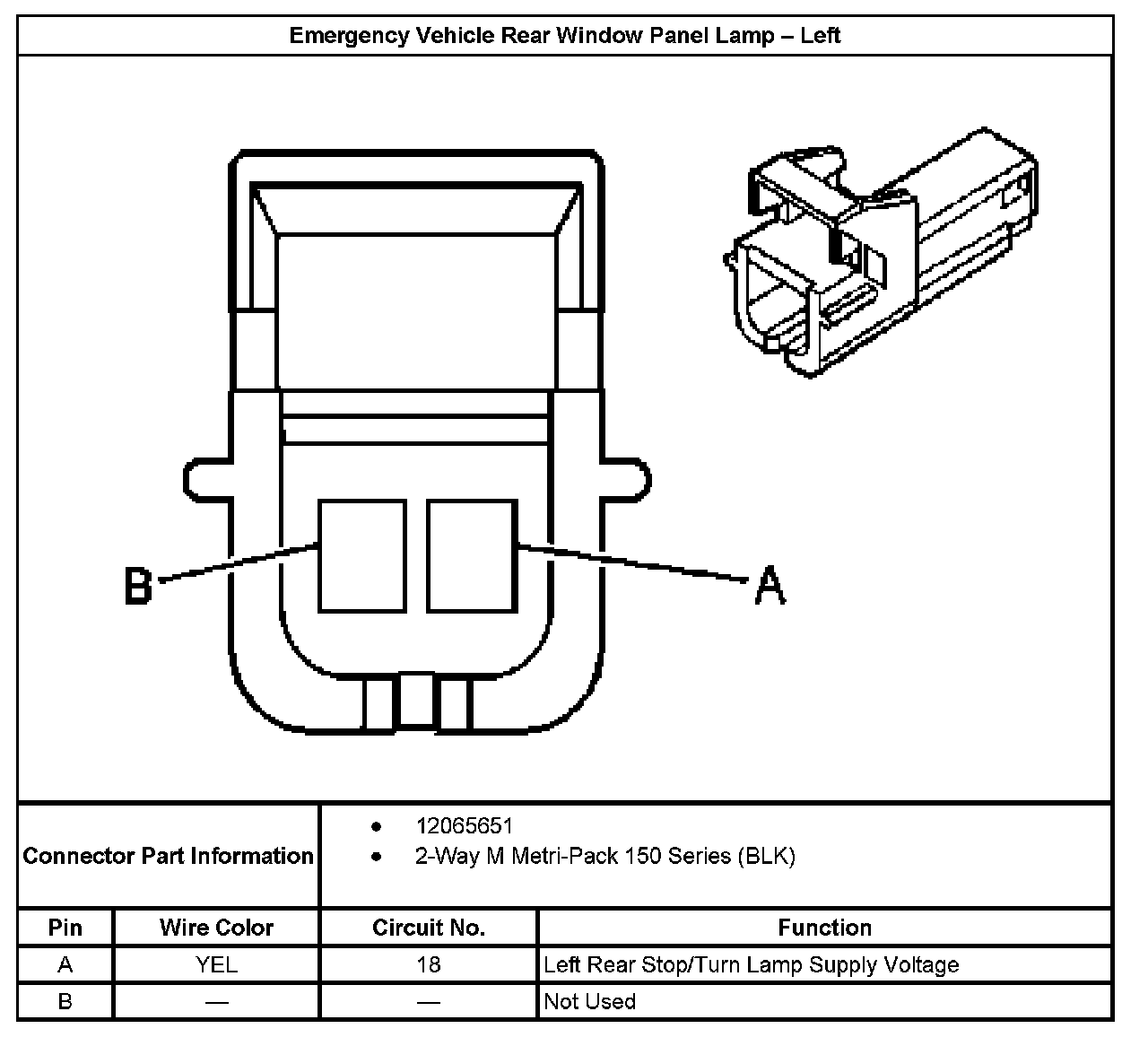

Emergency Vehicle Rear Window Panel Lamp - Left:

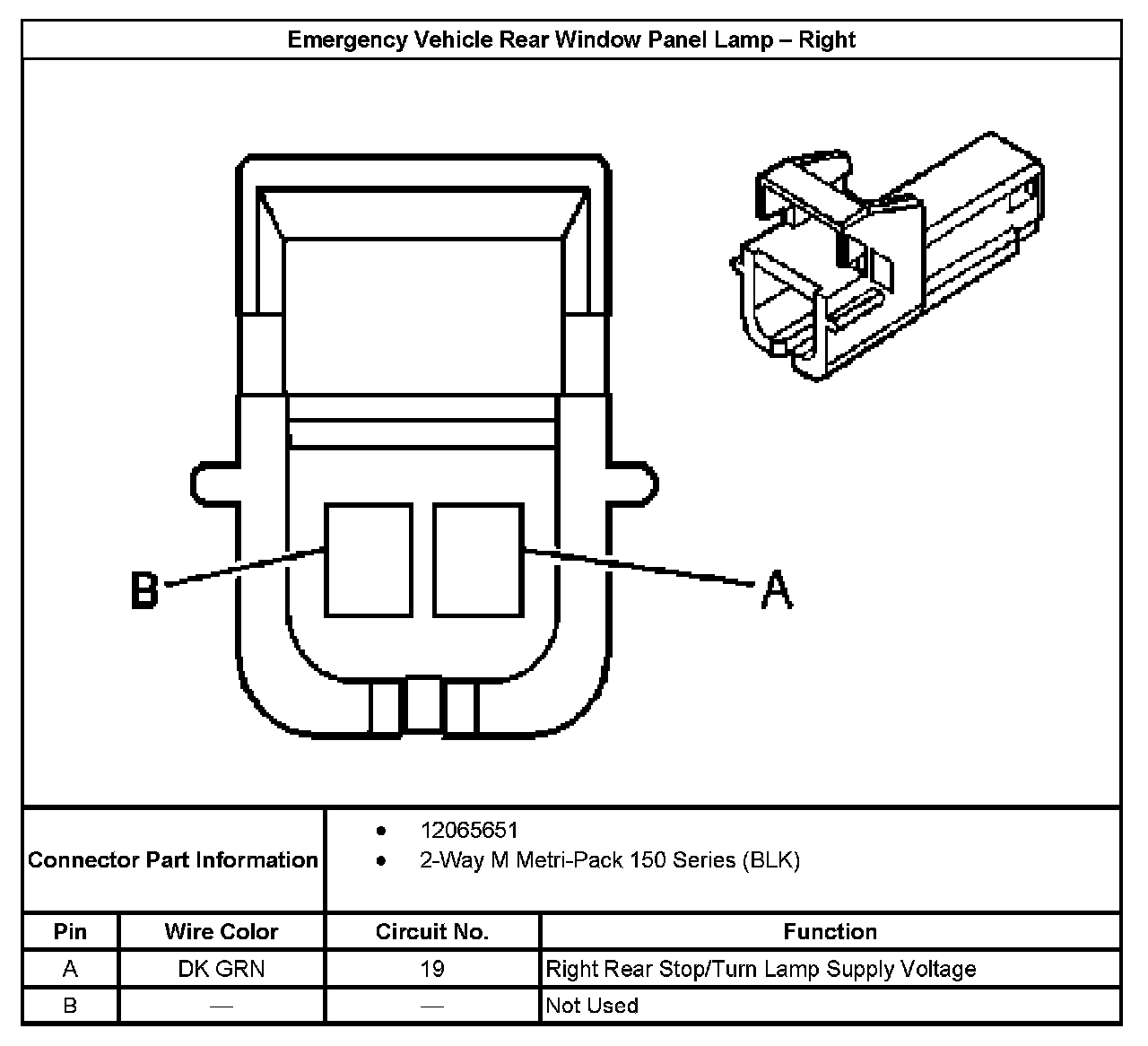

Emergency Vehicle Rear Window Panel Lamp - Right:
