Emergency Vehicle Rear Compartment Lid Lamp
Emergency Vehicle Rear Compartment Lid Lamp

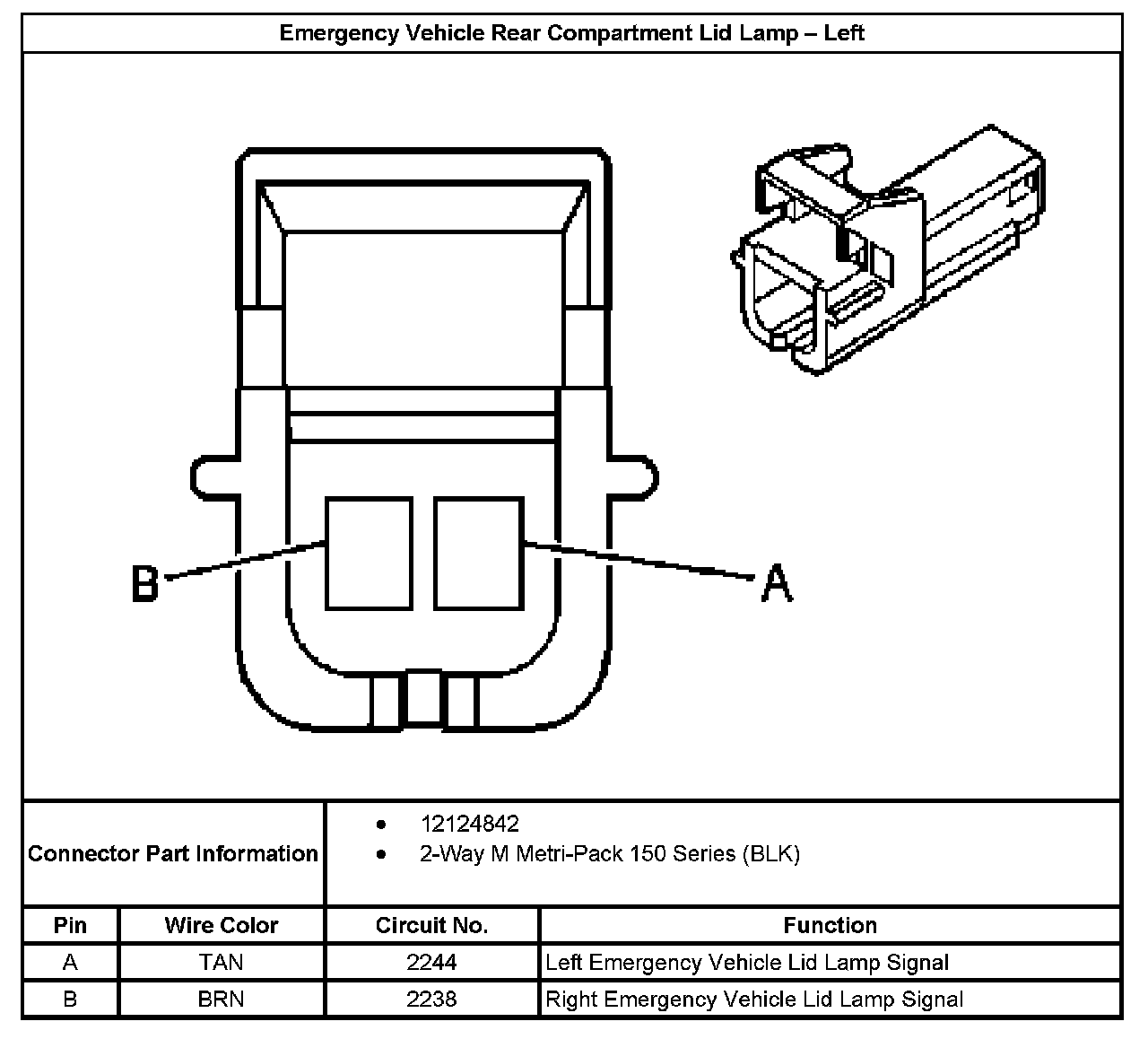

Emergency Vehicle Rear Compartment Lid Lamp - Left:

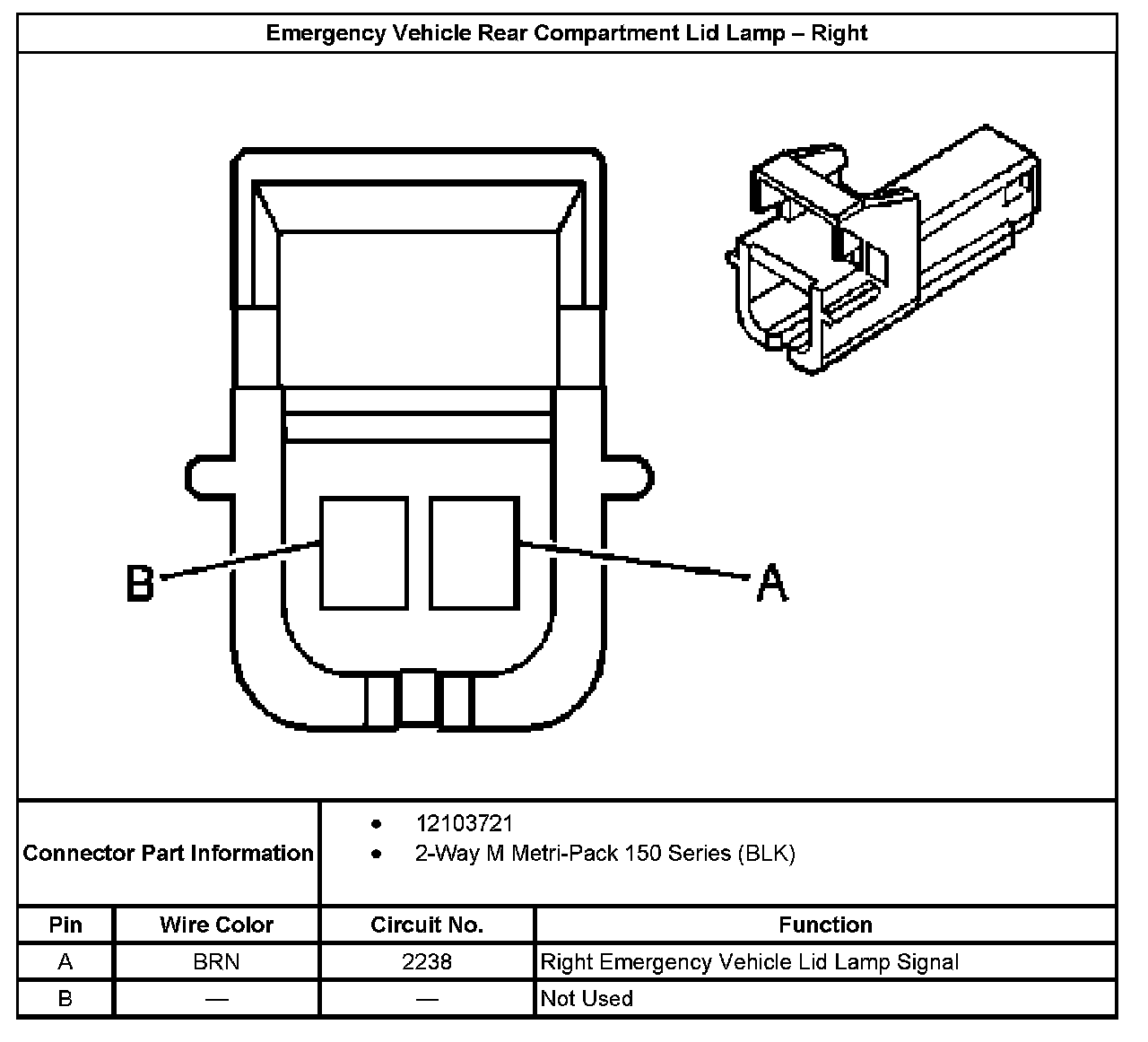

Emergency Vehicle Rear Compartment Lid Lamp - Right:
