Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C300 - C399
>>
C311
C311

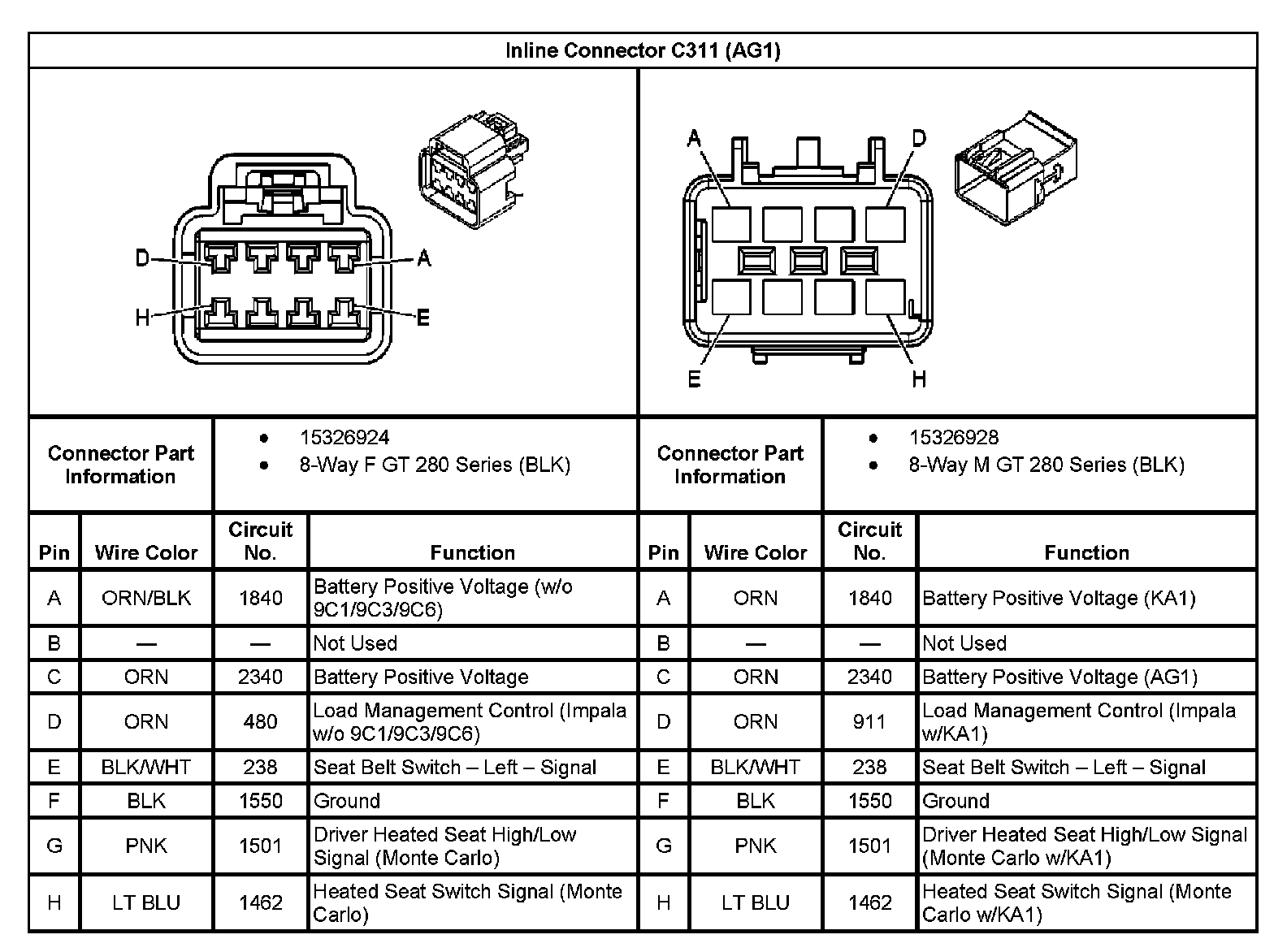

Inline Connector C311 (With RPO Code AG1):
