Auxiliary Power Outlet
>>
Auxiliary Power Outlet - Connectors
Auxiliary Power Outlet - Connectors

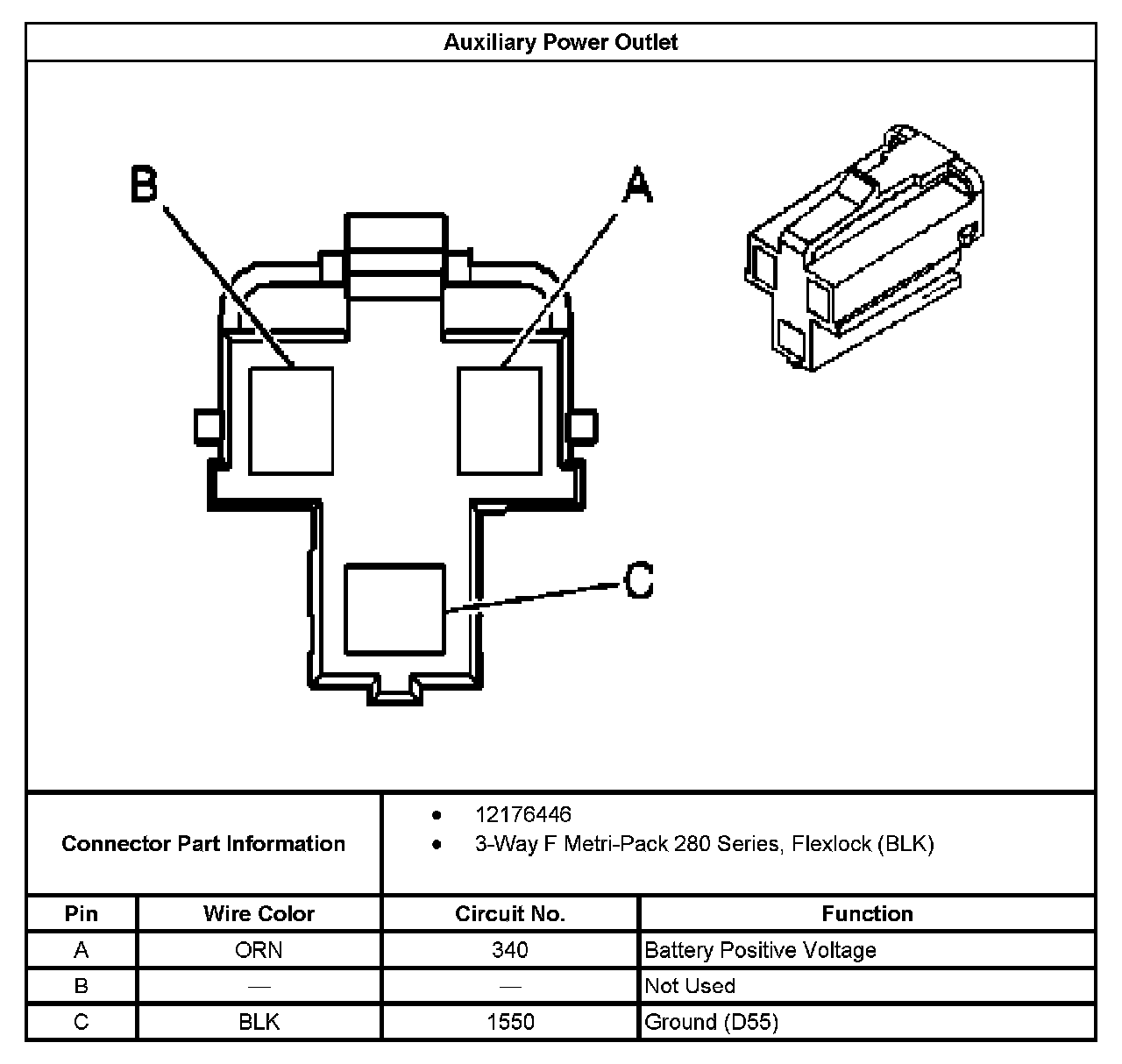

Auxiliary Power Outlet:
