Seal Replacement - Plenum to Hood

Seal Replacement - Plenum to Hood

Removal Procedure




1. Open the hood.
2. Remove the right side of the air inlet grille.

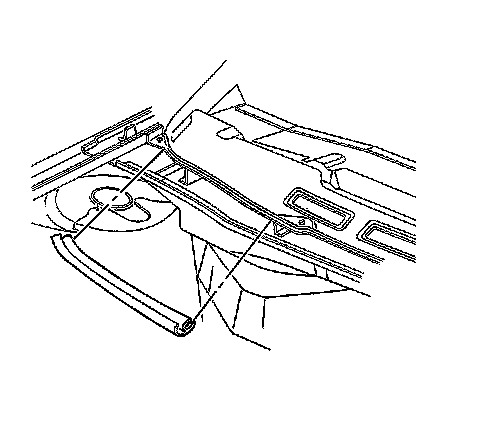

3. To remove the seal from the pinch-weld flange, start at the passenger side corner of the seal and pull forward and off of the pinch-weld flange.

Installation Procedure




1. Align the seal to the pinch-weld flange.
2. Press to install the seal to the pinch-weld flange, start at the passenger side corner and work toward the center of the car.
3. Install the right side of the air inlet grille.
4. Close the hood.
