Seal Replacement - Hood Rear

Seal Replacement - Hood Rear

Removal Procedure




1. Open the hood.

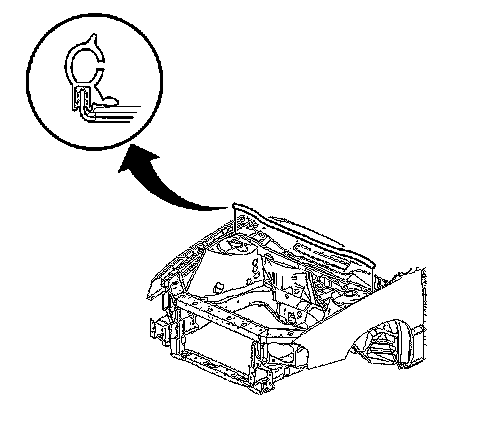

2. Pull the hood rear weatherstrip from the pinch-weld flange.
3. Remove the hood rear weatherstrip from the vehicle.

Installation Procedure




1. Install the hood rear weatherstrip to the pinch-weld flange.
2. Press the hood rear weatherstrip onto the pinch-weld flange.
3. Close the hood.
