Seal Replacement - Hood Front

Seal Replacement - Hood Front

Tools Required

J 38778Door Trim Pad Clip Remover

Removal Procedure




1. Open the hood.

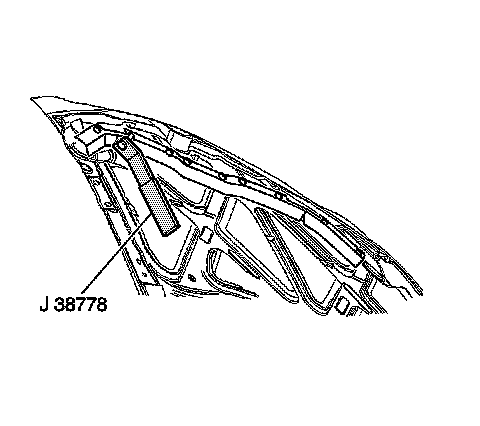

2. Use J 38778 to remove the push-in retainers from the front air seal.
3. Remove the front air seal from the hood.

Installation Procedure

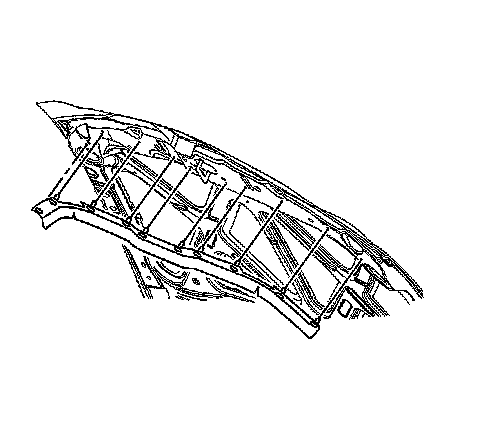

1. Install the front air seal to the hood.
2. Install the push-in retainers to the front air seal into the hood.
3. Close the hood.
