Seat Cushion Retainer Replacement - Rear

SEAT CUSHION RETAINER REPLACEMENT - REAR

REMOVAL PROCEDURE




1. Remove the rear seat cushion.

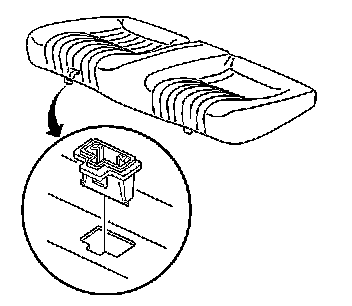

2. Use a flat-bladed tool to release the retainers from the floor.Slide the tool under the front edge and pry up.

INSTALLATION PROCEDURE




1. Install the retainers into the floor, pressing in until fully seated.
2. Install the rear seat cushion.
