Seat Cushion Replacement - Front

SEAT CUSHION REPLACEMENT - FRONT

REMOVAL PROCEDURE

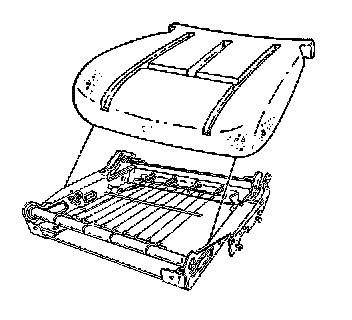

1. Remove the front seat from the vehicle.
2. Remove the front seat cushion cover from the front seat cushion.

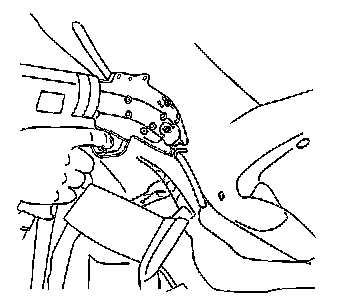

3. Remove the hog rings from the front seat cushion cover.




4. Remove the front seat cushion from the front seat frame.

INSTALLATION PROCEDURE




1. Position the front seat cushion to the front seat frame.

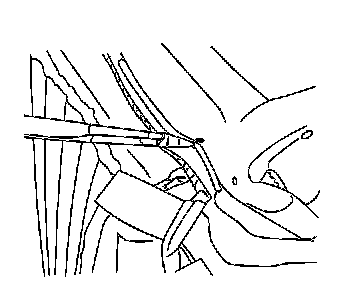

2. Install the hog rings to the front seat cushion cover.
3. Install the front seat cushion cover to the front seat cushion.
4. Install the front seat to the vehicle.
