Trim Panel Replacement - Upper Center Pillar

Trim Panel Replacement - Upper Center Pillar (Impala)

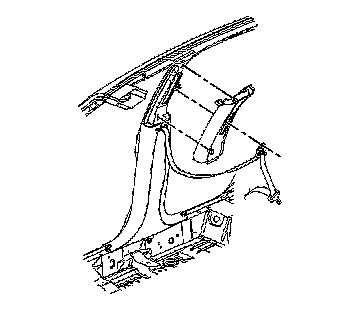

Removal Procedure




1. Remove the upper seat belt guide loop attachment from the adjuster bracket.

2. Pull out on the panel to disengage the retainer clip.
3. Remove the upper center pillar trim panel from the center pillar.

Installation Procedure




1. Align the upper center pillar trim panel to the center pillar.
2. Install the upper center pillar trim panel by applying sufficed pressure engage the push-in retainers.
3. Install the upper seat belt upper guide loop attachment to the adjuster bracket.
