Lower Side Moulding / Trim: Service and Repair

Molding Replacement - Body Side

Tools Required

J 25070 Heat Gun

Removal Procedure

1. Apply tape for alignment marks to aid in the installation of the body side molding.
2. Use tape to protect the mounting surface during removal.

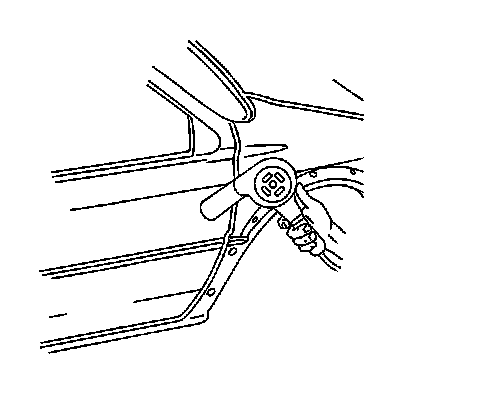

3. When removing a body side molding, heat the body side molding using a J 25070. Apply heat using a circular motion for about 30 seconds.






Notice: Refer to Exterior Trim Emblem Removal Notice in Service Precautions.

4. Use a plastic, flat-bladed tool to remove the body side molding from the panel surface.
5. When replacing a body side molding, remove all adhesive as follows:

* For body panels use a 3M(TM) Scotch Brite molding adhesive remover disk 3M(TM) P/N 07502 or equivalent.
* For plastic panels use a lint-free cloth and Varnish Makers and Painters (VMP) naptha or a 50/50 mixture by volume of isopropyl alcohol and water to remove the adhesive.

Installation Procedure

Important: Apply the body side molding in an environment that is free from dust or other dirt that could come into contact with the sticky backing. Foreign material may cause improper adhesion.

1. Clean the area where the body side molding will be installed.
Use a lint free cloth and Varnish Makers and Painters (VMP) naptha or a 50/50 mixture by volume of isopropyl alcohol and water to clean the area.
2. Dry the area thoroughly.

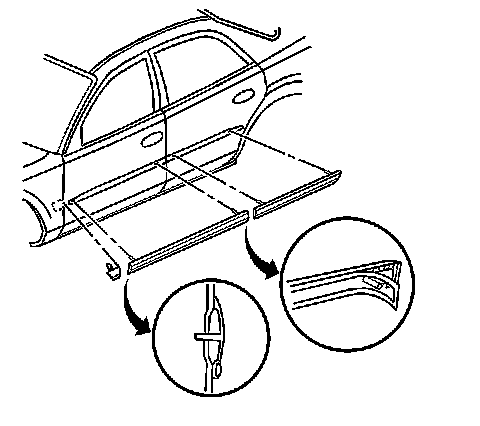

3. Apply tape and mark the location as shown.
4. Heat the mounting surface to approximately 27-41°C (80-105°F).
5. Ensure that the temperature of the body side molding is approximately 29-32°C (85-90°F).

Important: Do not touch the adhesive backing of the body side molding.

6. Remove the protective liner from the back of the body side molding.
7. Position the body side molding to the location marks and press the molding to the mounting surface.
8. Apply equal pressure along the body side molding to uniformly bond the item to the mounting surface.
9. Remove the protective tape from the mounting surface.
