Fascia Support Bracket Replacement - Front Upper

Fascia Support Bracket Replacement - Front Upper

Removal Procedure




1. Open the hood.
2. Remove the upper radiator air baffle.

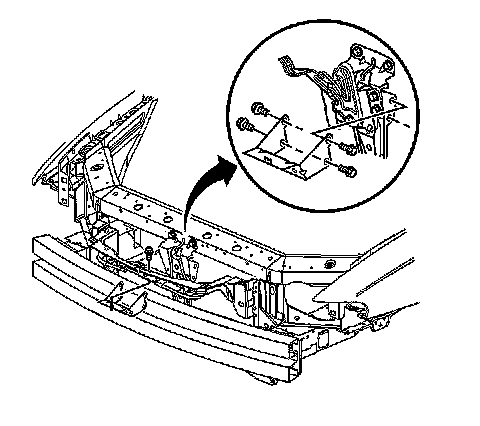

3. Remove the bolts from the center support bracket at the front bumper fascia.
4. Remove the center support bracket from the hood latch center support.

Installation Procedure




1. Align the center support bracket to the hood latch center support and to the upper support.
2. Install the bolts to the hood latch center support and hand tighten.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the bolt to the front bumper fascia upper support.

1. Tighten the bolt to the front bumper fascia upper support to 10 N.m (89 lb in).
2. Tighten the bolts to the hood latch center support to 10 N.m (89 lb in).

4. Install the upper radiator air baffle.
5. Close the hood.
