Fascia Extension Replacement - Front

Fascia Extension Replacement - Front

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.




2. Drill out the plastic rivits from the front bumper fascia extension corner to the front fender liner.
3. Remove the lower fascia support.

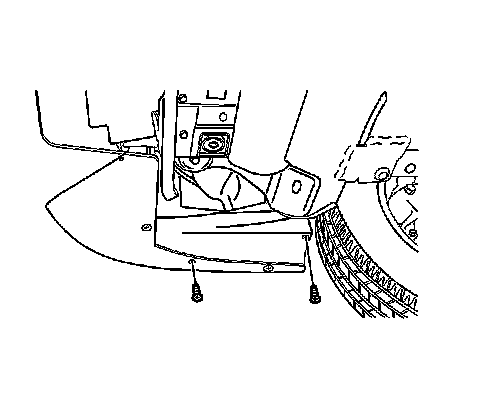

4. Remove the front fender liner to front bumper fascia screws.

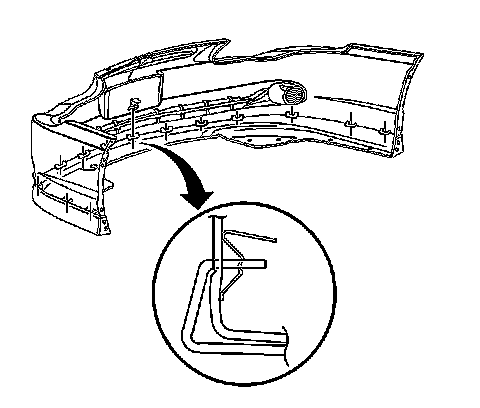

5. Remove the spring clips from the fascia extension.

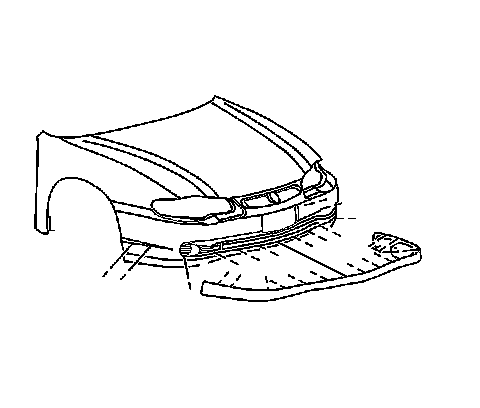

6. Remove the fascia extension.

Installation Procedure




1. Position the fascia extension to the fascia.




2. Install the spring clips starting at the center of the fascia extension and working outward.






Notice: Refer to Fastener Notice in Service Precautions.

3. Install the screws to the front fender liner at the front of the front bumper fascia.

Tighten the front fender liner to fascia screws to 2 N.m (18 lb in).




4. Using new plastic rivits, install the 2 plastic rivits to the front bumper fascia extension corner and front fender liner.
5. Install the lower fascia support.
6. Lower the vehicle.
