Rear

SPEAKER REPLACEMENT - REAR

REMOVAL PROCEDURE




1. Remove the rear window trim panel.

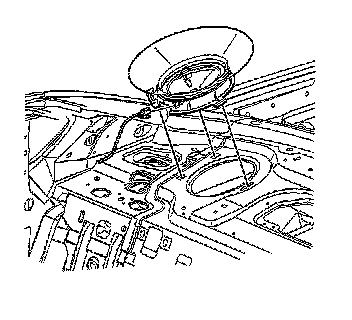

2. Disengage the speaker retaining tabs. Remove the speaker alignment tab from the opening in the rear window panel.The speaker seal may have bonded with the shelf metal. Carefully pry the housing away from the metal while holding the speaker retaining tabs in order to remove the speaker.




3. Remove the rear speaker.
4. Disconnect the electrical connector from the rear speaker.

INSTALLATION PROCEDURE

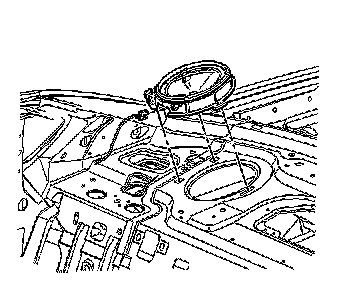

1. Connect the electrical connector to the rear speaker. Position the rear speaker to the rear window panel.




2. Install the speaker alignment tab into the opening in the rear window panel. Engage the speaker retaining tabs.
3. Install the rear window trim panel.
