Headlamp Washer Hose: Service and Repair

HOSE REPLACEMENT - HEADLAMP WASHER

REMOVAL PROCEDURE

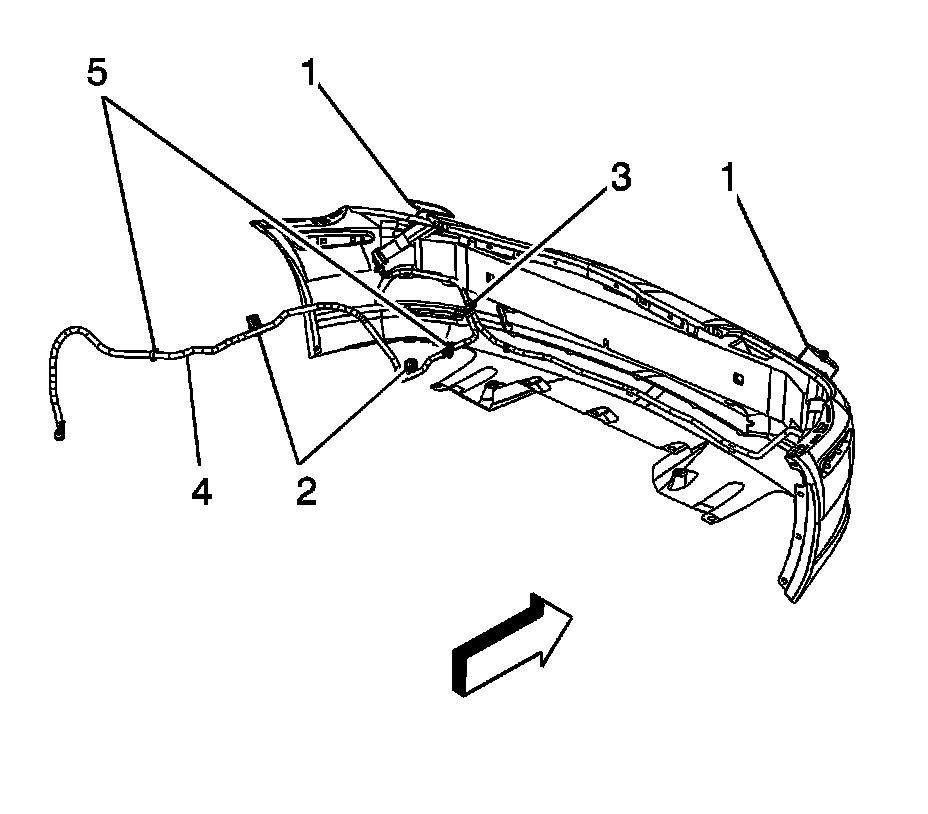

IMPORTANT: The headlamp washer hose consists of multiple sections (4), and slide-lock connectors (5), from the pump to the headlamp washers (1). It may be necessary to work underhood, or inside the front fascia to service the Tee fitting (3), and hose clips (2). If it is necessary to access the washer solvent container hose.




1. Remove the front wheelhouse.

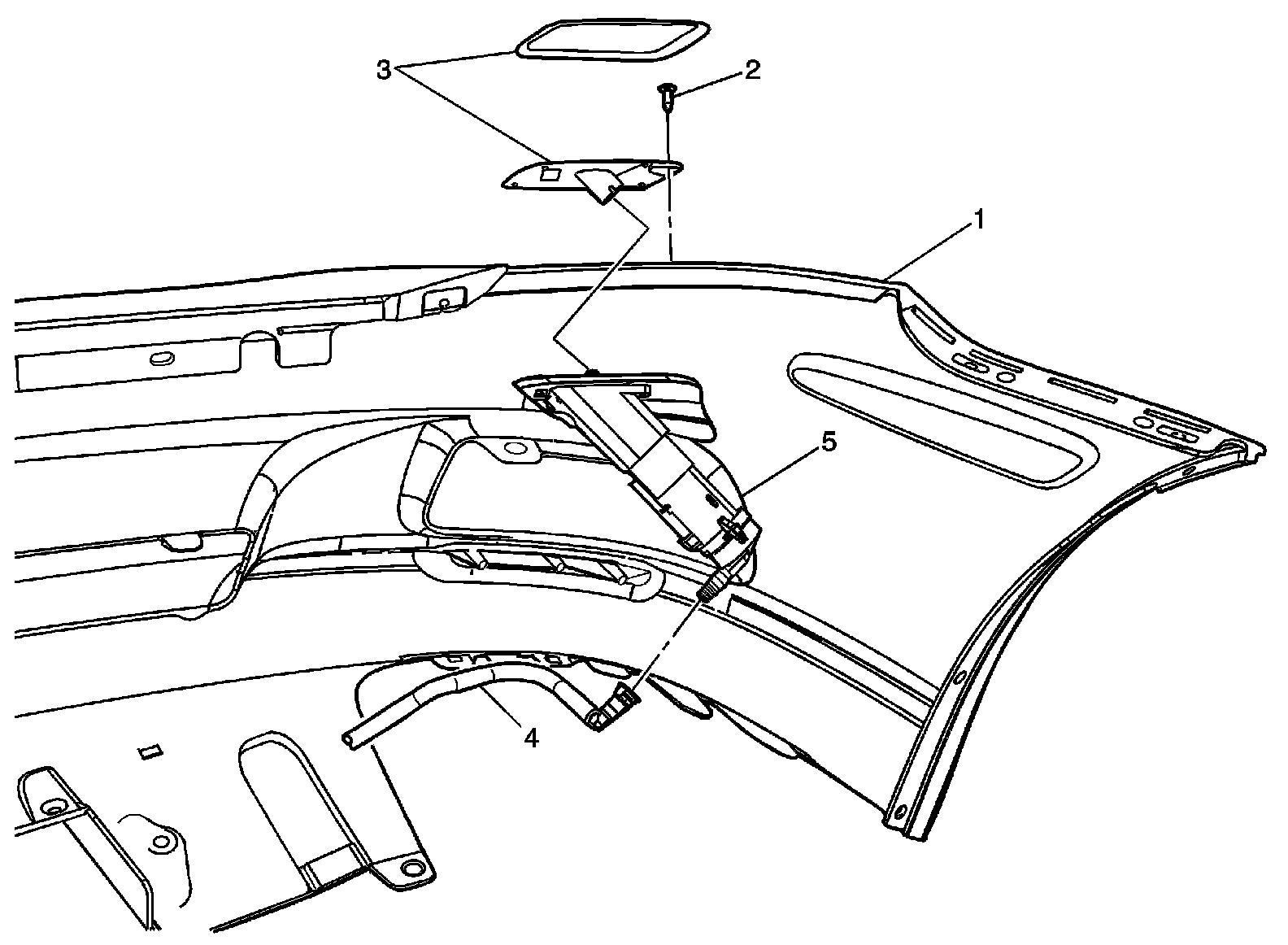

2. Slide the hose lock connector (4) at the headlamp washer supply hose, and disconnect the coupling.

IMPORTANT: Carefully grasp both fittings of the hose and elbow, to ensure the nozzle is not cracked during removal.

INSTALLATION PROCEDURE




1. Connect the headlamp washer supply hose to the headlamp washer. Slide the lock connector (4) to the closed position.

IMPORTANT: Carefully grasp both fittings of the hose and elbow, to ensure the nozzle is not cracked during installation.

2. Verify the operation of the washer. Inspect the washer for leaks.
3. Install the wheelhouse.

NOTE: Refer to in Service Precautions.
