Flexplate to Flexplate Spindle Bolts

On-Vehicle Service

Flexplate to flexplate spindle bolts 50 Nm (37 lb ft)

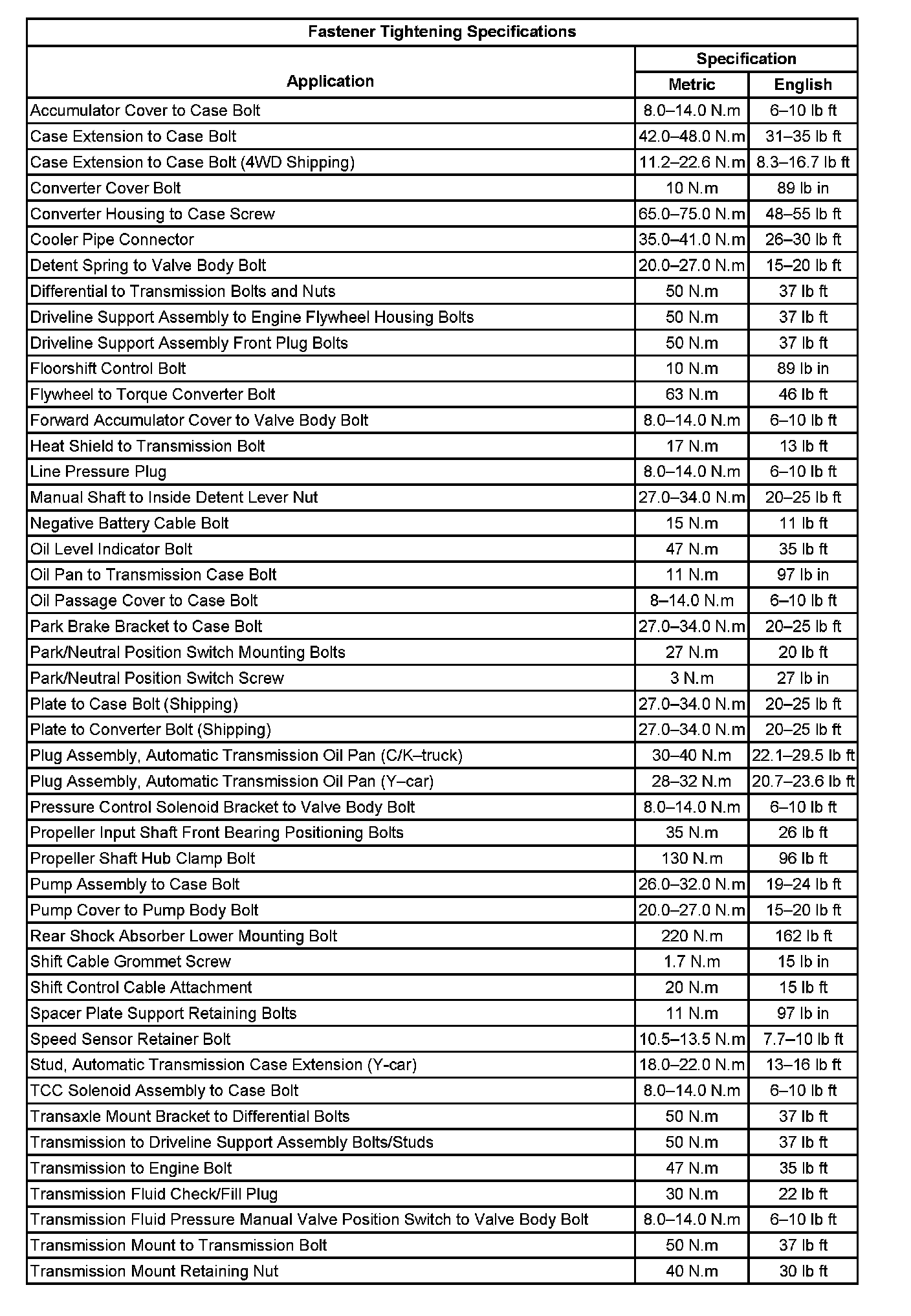

Fastener Tightening Specifications:

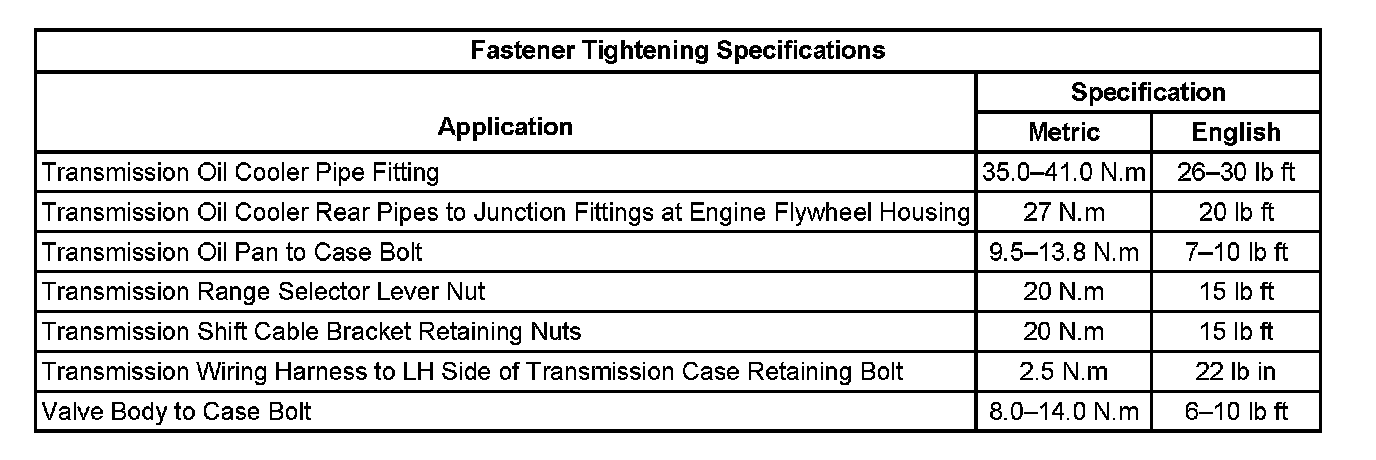

Fastener Tightening Specifications:





Fastener Tightening Specifications





Transmission General Specifications
