Power Steering Gear Replacement

Power Steering Gear Replacement

^ Tools Required
- J 33432-A Leaf Spring Compressor

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tires and wheels.
3. Disconnect the tie rod ends from the steering knuckles.
4. Disconnect the intermediate shaft from the power steering gear.
5. Remove the stabilizer shaft.
6. Remove the power steering pressure and return hoses from the power steering gear.
7. Remove the power steering line hold-downs from the crossmember.
8. Remove the brake pressure modulator valve (BPMV) bracket.
9. Remove the two front crossmember mounting nuts.
10. Using hand tools only, LOOSEN, Do Not Remove, the two rear crossmember mounting nuts 10 mm (0.394 inch).
11. Disconnect the height sensor arm to the control arm.
12. Use a utility stand to support the front of the crossmember.
13. Using the J 33432-A, by compressing the coil spring, it will allow the crossmember to lower enough to properly remove the gear.
14. Remove the lower shock mounting bolts.
15. Remove the brake pipe bracket for the left front brake caliper from the crossmember.
16. Remove the plastic brake pipe hold-down for the right front brake pipe.

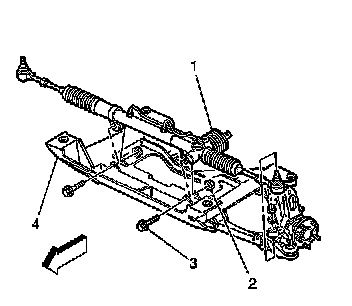

17. Remove the power steering gear mounting bolts (3) and nuts (2).
18. Maneuver the power steering gear around the brake lines (1) from the vehicle through the left wheelhouse opening.

Installation Procedure





1. Install the power steering gear (1) into the vehicle through the left wheelhouse opening.

2. Install the power steering gear mounting bolts (3) and nuts (2).
^ Tighten the nuts to 100 Nm (74 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the lower shock mounting bolts.
4. Raise the crossmember by the utility stand and remove J 33432-A.
5. Install all of the crossmember mounting nuts.
^ Tighten the nuts, using hand tools only, to 110 Nm (81 ft. lbs.).
6. Install the brake pipe bracket for the left front brake caliper to the crossmember.
7. Install the plastic brake pipe hold-down for the right front brake pipe.
8. Install the brake BPMV bracket.
9. Install the power steering pressure hose to the power steering gear.
^ Tighten the fittings to 27 Nm (20 ft. lbs.).
10. Install the power steering return hose to the power steering gear.
^ Tighten the fittings to 27 Nm (29 ft. lbs.).
11. Install the power steering hold-downs to the crossmember.
12. Install the stabilizer shaft to the crossmember.
13. Connect the intermediate shaft to the power steering gear.
14. Connect the height sensor arm to the control arm.
15. Connect the tie rod ends to the steering knuckles.
16. Install the tires and wheels.
17. Lower the vehicle.
18. Bleed the power steering system.
19. Adjust the front wheel toe.
