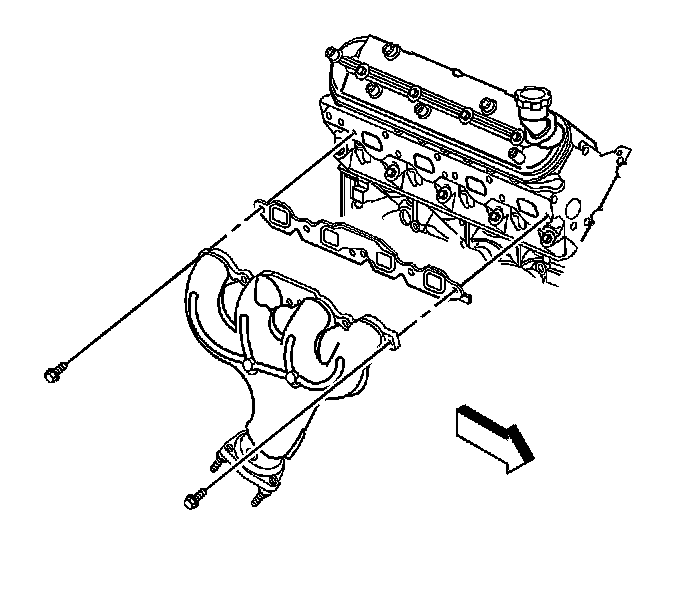

Exhaust Manifold

Exhaust Manifold Bolts
First Pass 15 Nm (11 ft. lbs.)
Final Pass 25 Nm (18 ft. lbs.)
Exhaust Manifold Heat Shield Bolts 9 Nm (80 inch lbs.)
Exhaust Manifold Studs 20 Nm (15 ft. lbs.)
