Spacer and Shim Specifications
Spacer and Shim Specifications
Pinion Shim Calculation Table with an A1 Value Greater Than 103.00 mm (4.055 inch) All Axle Ratios

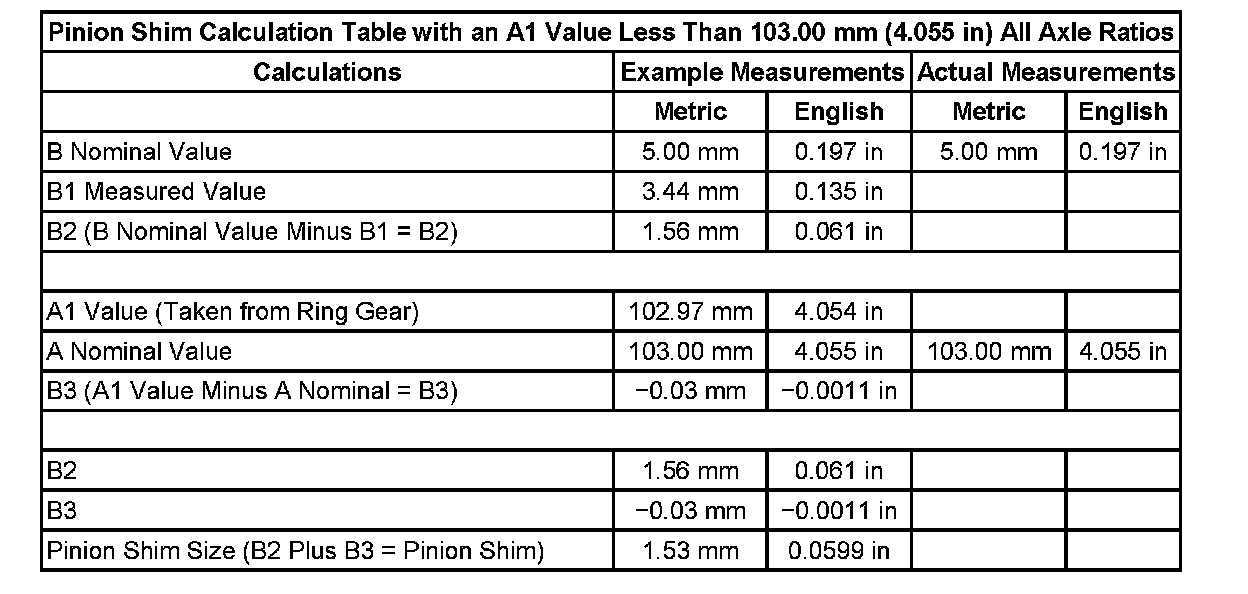

Pinion Shim Calculation Table with an A1 Value Less Than 103.00 mm (4.055 inch) All Axle Ratios

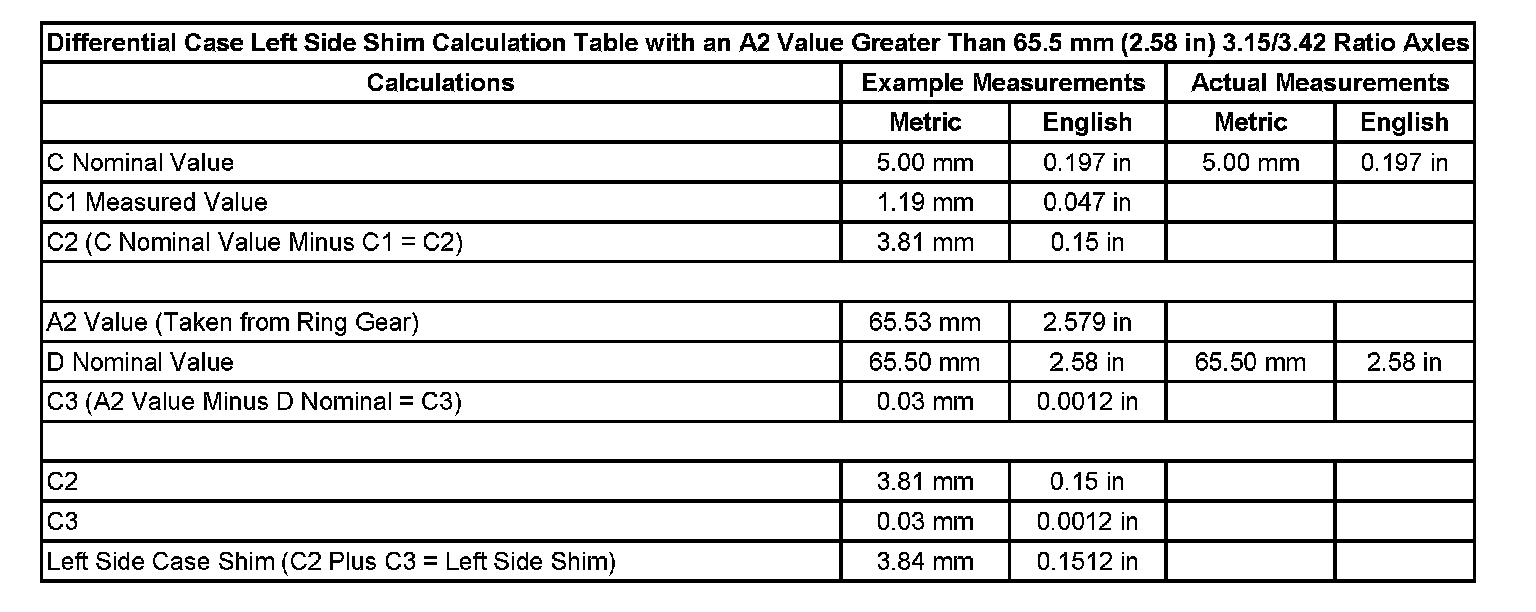

Differential Case Left Side Shim Calculation Table with an A2 Value Greater Than 65.5 mm (2.58 inch) 3.15/3.42 Ratio Axles
Differential Case Left Side Shim Calculation Table with an A2 Value Less Than 65.5 mm (2.58 inch) 3.15/3.42 Ratio Axles

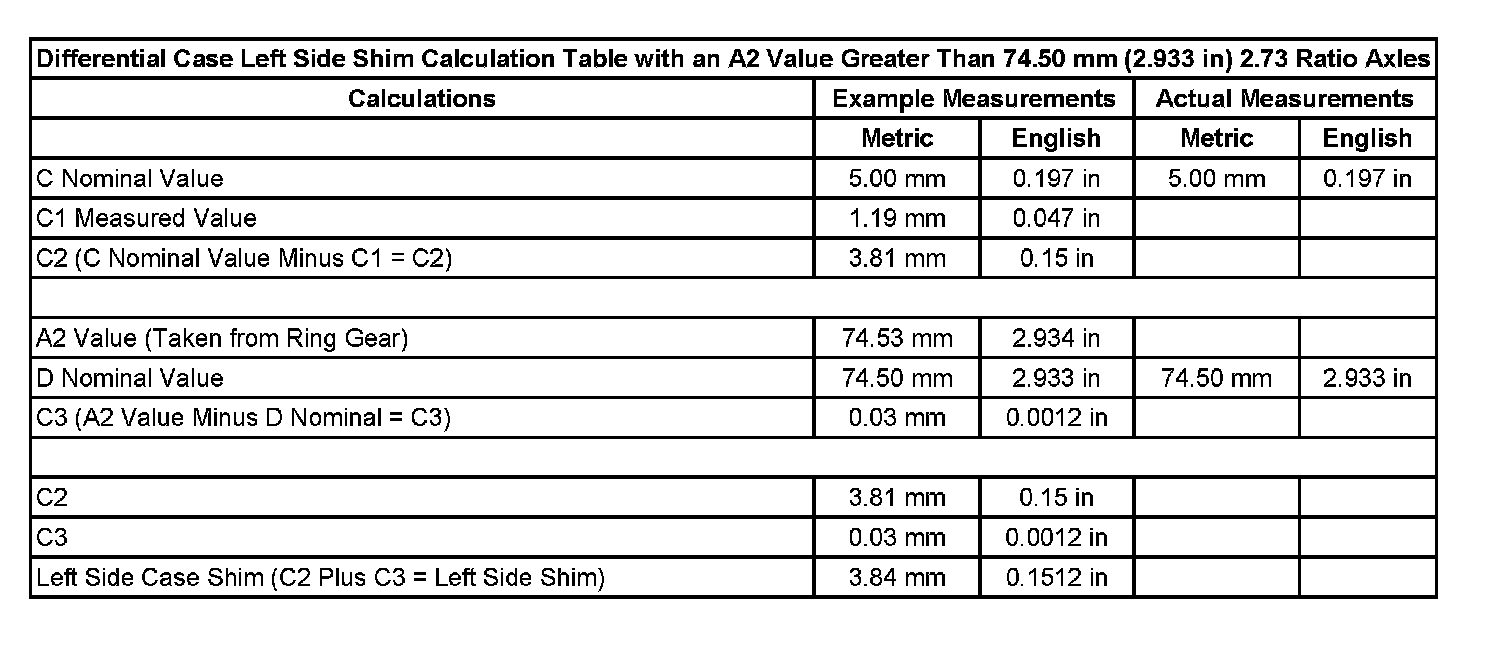

Differential Case Left Side Shim Calculation Table with an A2 Value Greater Than 74.50 mm (2.933 inch) 2.73 Ratio Axles
Differential Case Left Side Shim Calculation Table with an A2 Value Less Than 74.50 mm (2.933 inch) 2.73 Ratio Axles
