Service Procedure

The following procedure provides instructions for replacing the inflatable restraint module LED indicator located on the floor console and the switch located in the instrument panel (I/P) compartment.

1. Locate the inflatable restraint module indicator on the floor console just forward of the storage compartment.

2. Open the floor console storage compartment lid.

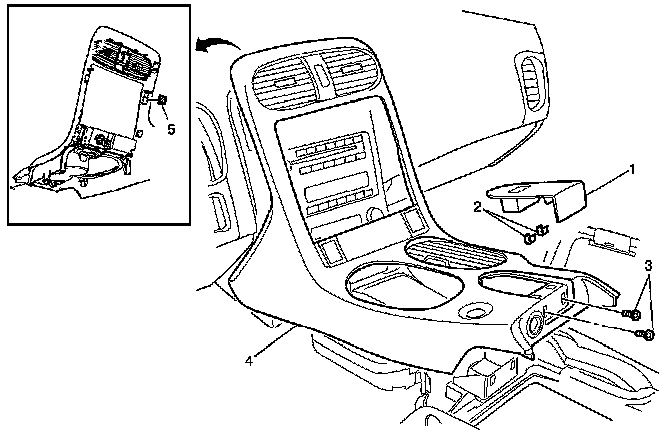

3. Using a flat-bladed tool, carefully lift up the rear edge of the indicator bezel (1) from inside the storage compartment to release the two retainers (2).

4. Pull the bezel rearward and out.

5. Disconnect the electrical connector from the indicator.

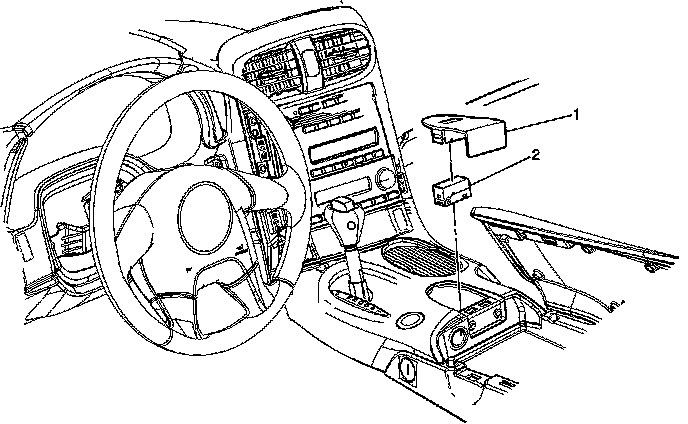

6. Depress the tabs on each side of the indicator (2) and remove it from the bezel (1).

7. Install the new indicator in the bezel and engage the tabs.

8. Connect the electrical connector to the indicator.





9. Position the bezel to the console and press firmly to engage the two retainers

10. Close the storage compartment lid.

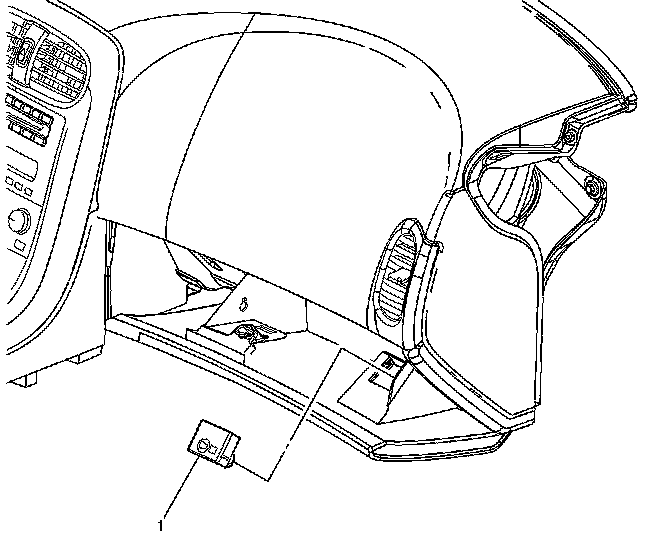

11. Open the I/P compartment door and locate the inflatable restraint module off switch (1).

12. Using a flat-bladed tool, carefully lift up the edge of the switch in order to release it from the compartment door.

Important:
If there isn't sufficient length in the switch wiring harness to allow for disconnecting the electrical connector in the next step, it will be necessary to fully open (drop down) the compartment door to access and release additional wiring length.

13. Disconnect the electrical connector from the switch.

14. Connect the electrical connector to the NEW switch.

15. Position the new switch to the opening in the compartment door and press into place.

16. Close the I/P compartment door.
