Seat Sensor/Switch: Diagrams

Inflatable Restraint Seat Position Switch Left:

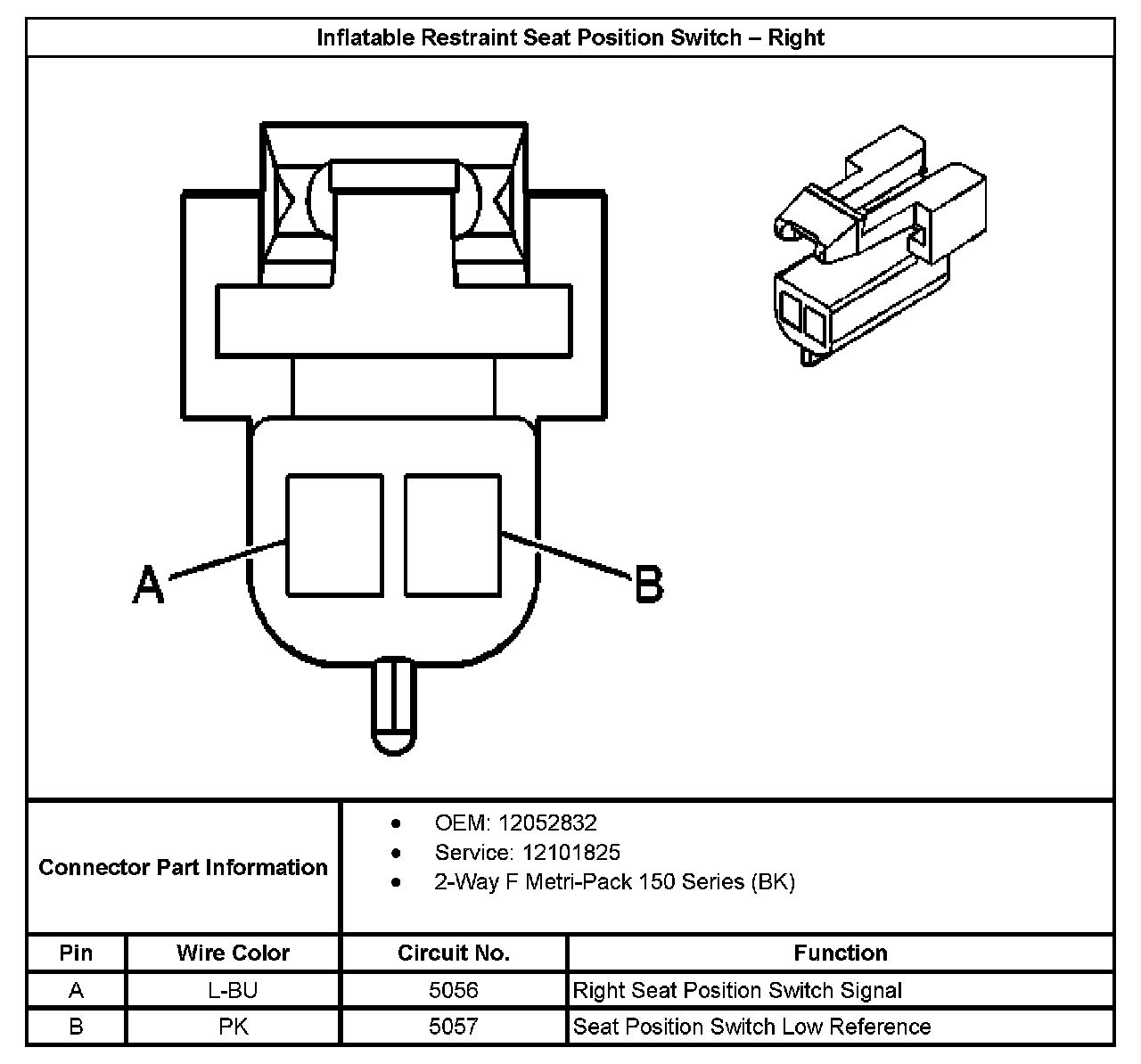

Inflatable Restraint Seat Position Switch Right:
