Left Front (Convertible)

SEAT BELT RETRACTOR REPLACEMENT - LEFT FRONT (CONVERTIBLE)

REMOVAL PROCEDURE
1. Remove the Drivers seat.
2. Remove the intermediate carpet.

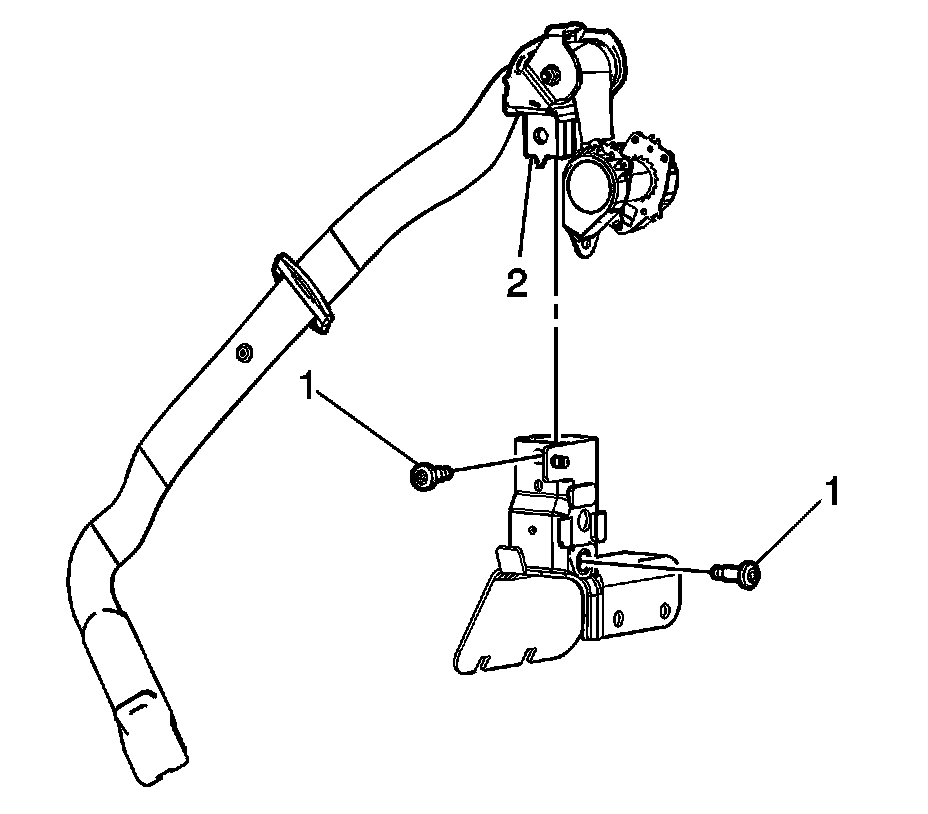

3. Remove the bolts attaching the retractor.
4. Remove the bolt securing the seat belt anchor to the seat.
5. Remove the retractor assembly from the vehicle.

INSTALLATION PROCEDURE
1. Position the retractor assembly in the vehicle.




2. Install the retractor and seat belt anchor bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolts to 41 N.m (31 lb ft).

3. Install the intermeddle carpet.
4. Install the drivers seat.
