Glove Box Lamp: Service and Repair

INSTRUMENT PANEL (I/P) COMPARTMENT LAMP BULB REPLACEMENT

REMOVAL PROCEDURE




1. Open the instrument panel (I/P) passenger compartment door.

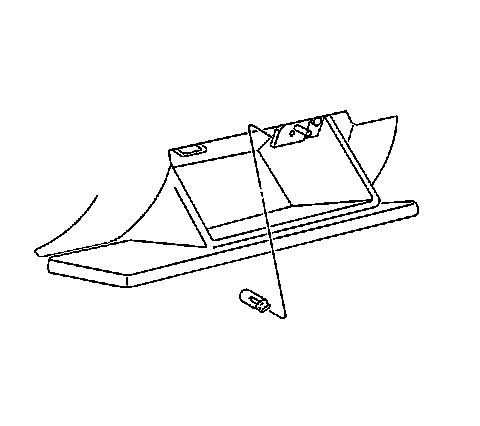

2. Reach behind the I/P compartment lamp switch, grasp the bulb, then pull the bulb to remove.

INSTALLATION PROCEDURE




1. Install the bulb to the socket in the back of the switch.
2. Close the I/P passenger compartment door.
