Glove Box Lamp Switch: Service and Repair

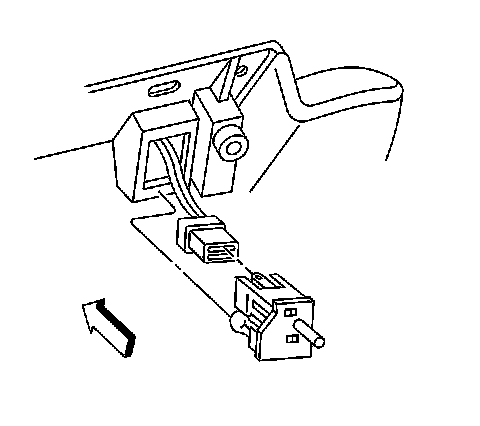

INSTRUMENT PANEL (I/P) COMPARTMENT LAMP SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) passenger compartment.
2. Depress the tabs on the sides of the I/P compartment lamp switch.
3. Carefully push the switch and lamp unit out of the opening and remove.

INSTALLATION PROCEDURE




1. Position the I/P compartment lamp and switch unit into the opening in the I/P passenger compartment.
2. Push on the switch snapping the switch into the panel.
3. Install the I/P passenger compartment.
