Home
>>
Chevrolet
>>
2005
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Diagrams
>>
Connector Views
>>

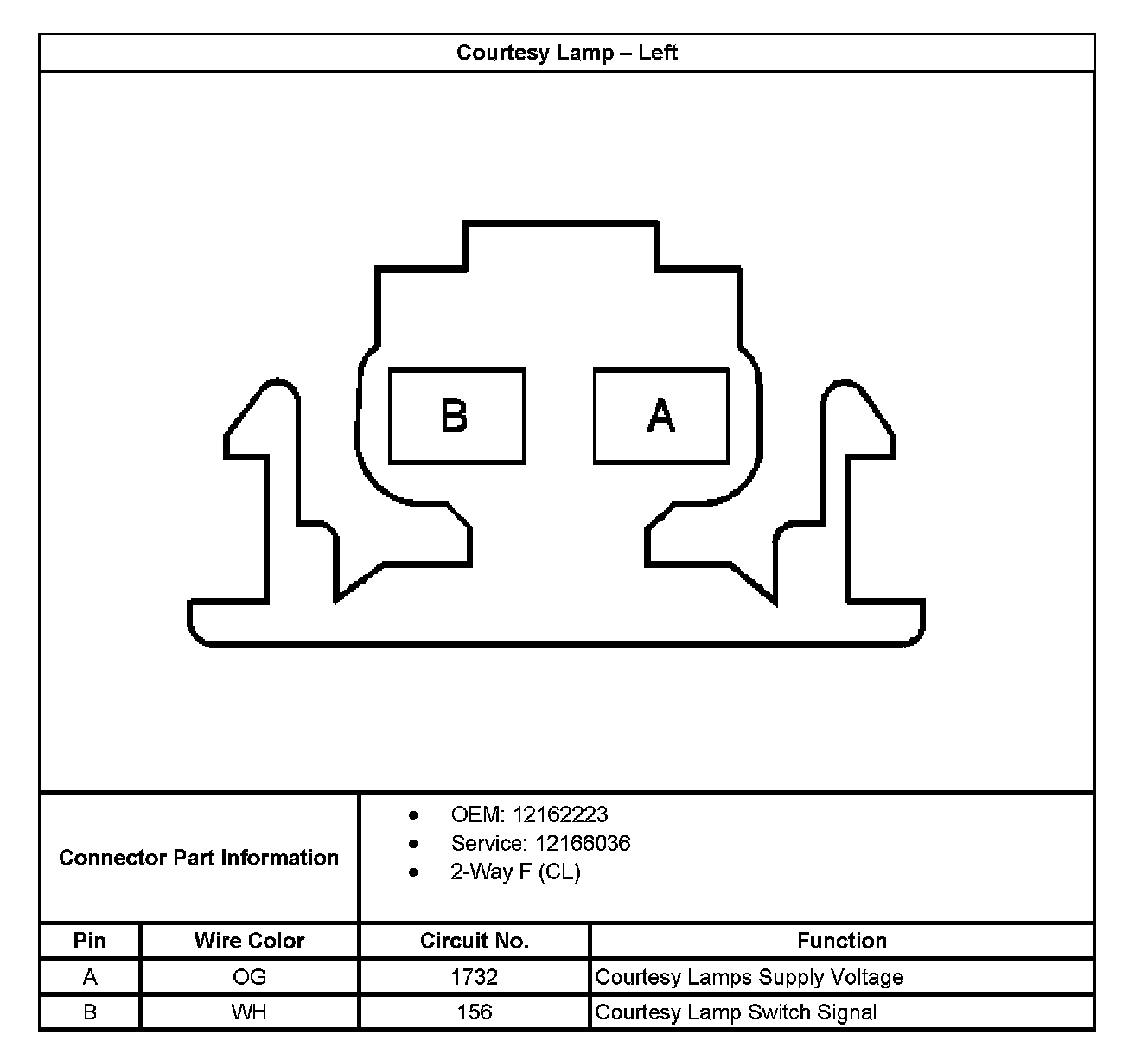

Courtesy Lamp - Left
Courtesy Lamp - Left
Courtesy Lamp - Left:
