Home >> Chevrolet >> 2005 >> Corvette V8-6.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Heads Up Display Unit >> Diagrams >> Connector Views >> Head Up Display Switch

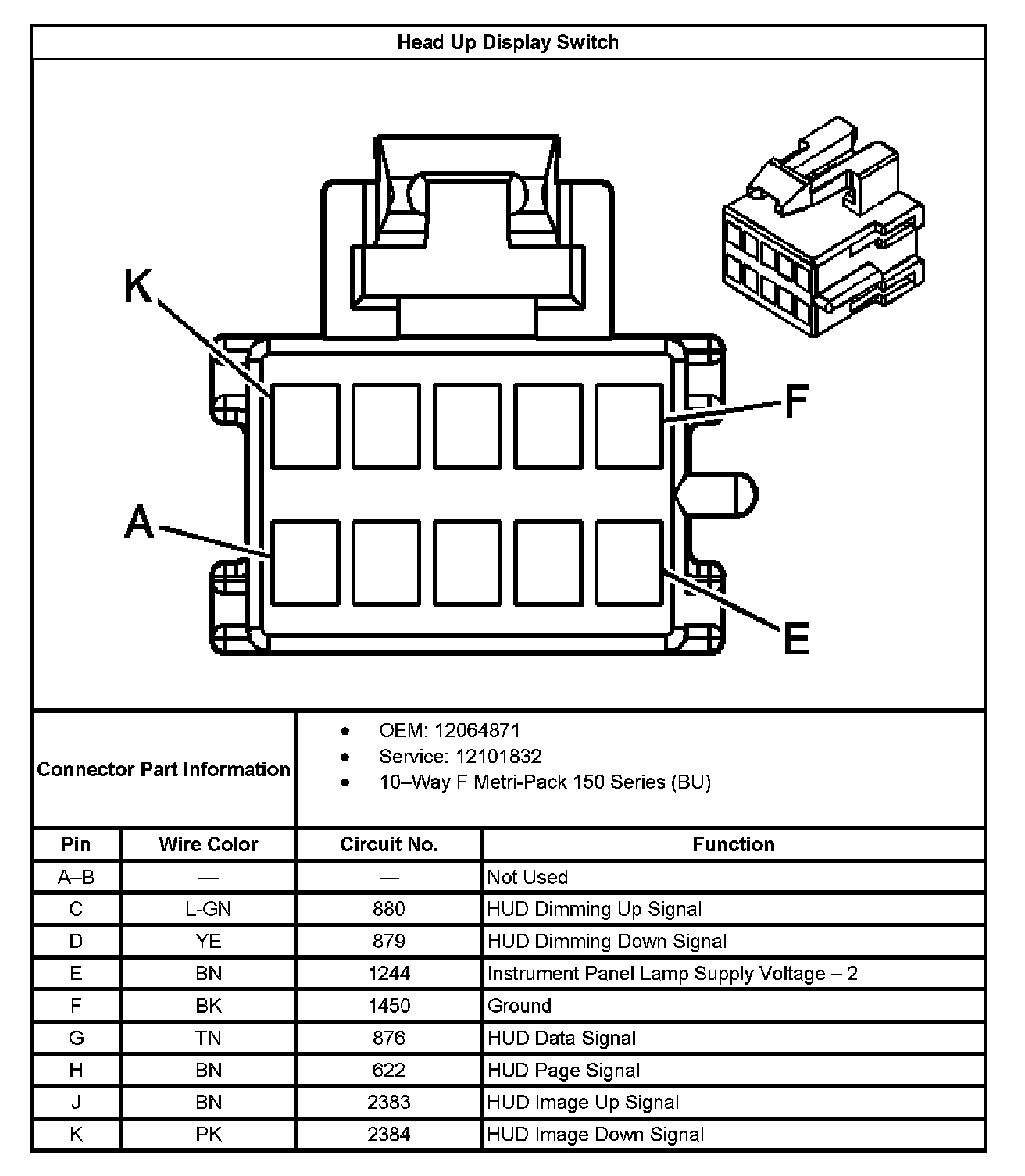

Head Up Display Switch

Head Up Display Switch:
