Air Temperature Sensor - Upper Left

AIR TEMPERATURE SENSOR REPLACEMENT - UPPER LEFT

REMOVAL PROCEDURE
1. Remove the instrument panel cluster (IPC).




2. Disconnect the left upper air temperature sensor electrical connector.

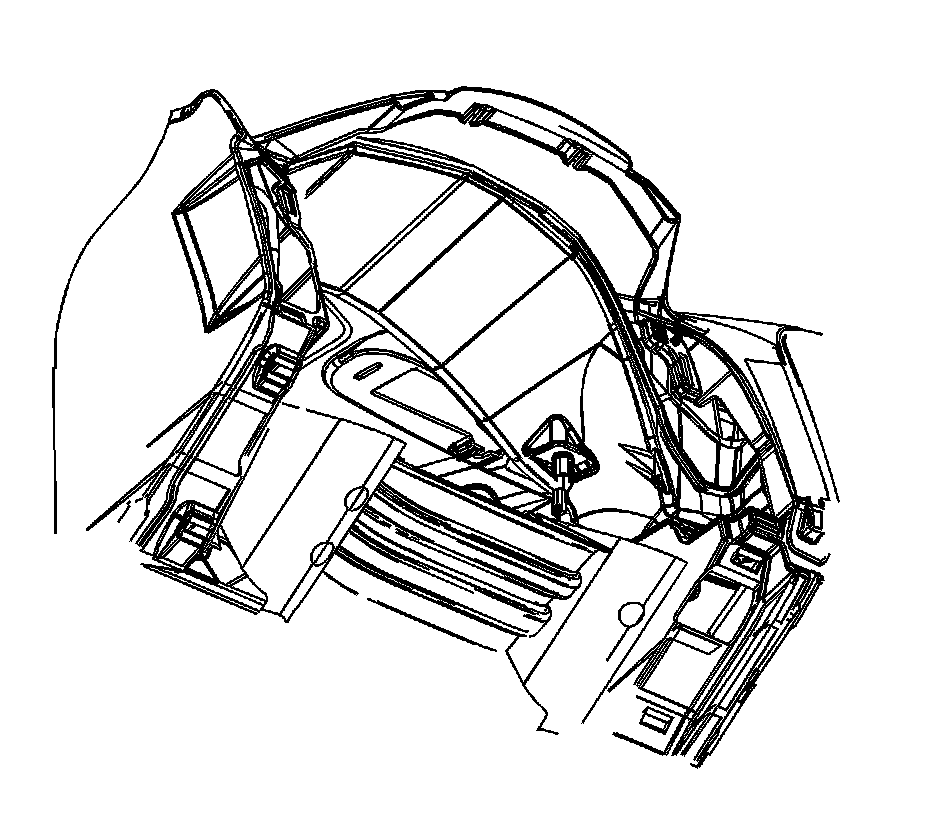

3. Remove the left upper air temperature sensor from the air distribution duct.

INSTALLATION PROCEDURE




1. Install the left upper air temperature sensor to the air distribution duct.




2. Connect the left upper air temperature sensor electrical connector.
3. Install the IPC.
