Air Temperature Sensor - Lower Left

AIR TEMPERATURE SENSOR REPLACEMENT - LOWER LEFT

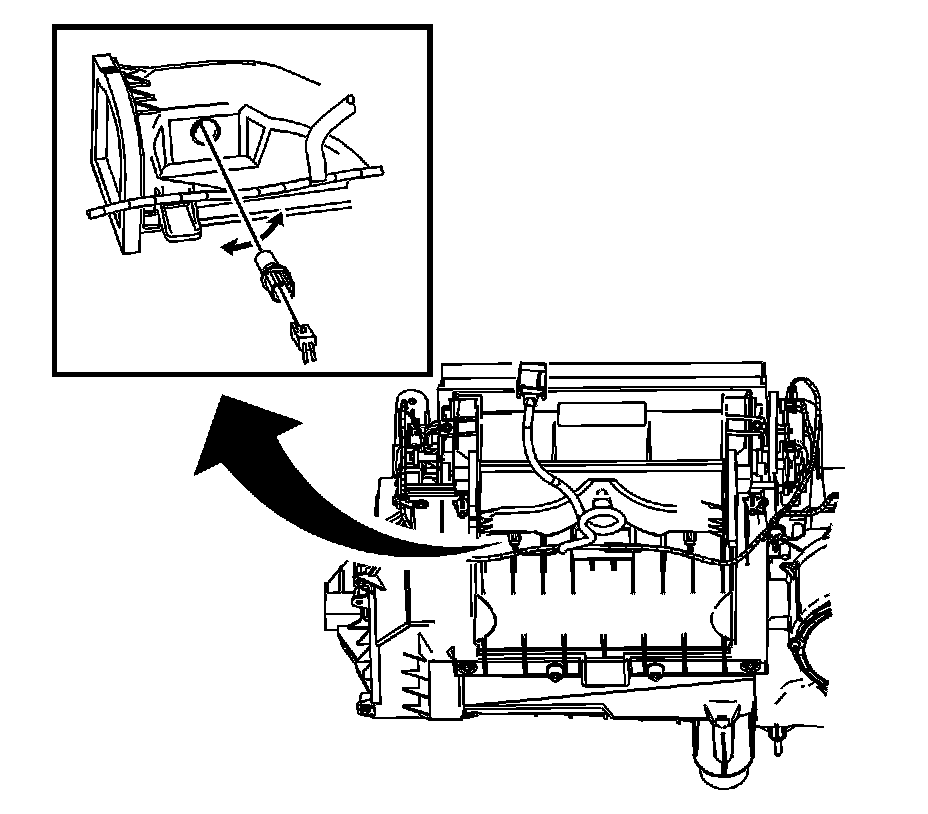

REMOVAL PROCEDURE




1. Remove the HVAC module.
2. Disconnect the lower LH diagnostic test mode (DTM) sensor electrical connector.
3. Remove the lower LH DTM sensor from the HVAC module.

IMPORTANT: Rotate the DTM sensor counterclockwise to disengage the sensor from the lower duct.

INSTALLATION PROCEDURE




1. Install the lower LH DTM sensor to the HVAC module.

IMPORTANT: Rotate the DTM sensor clockwise to engage the sensor to the lower duct.

2. Connect the lower LH DTM sensor electrical connector.
3. Install the HVAC module.
